Meister

This model was named Meister in hopes of contribution in industrial development.

The Meister series is a unique model which has a full-fledged structure built of logs of North America or North Europe. It provides profound feeling and warmth special to wood.
Also, measures for coldness are taken, such as adoption of vinyl window frames (sashes) and double glazing windows with algon gas fill and installation of heat insulating material for cold districts in a roof and a floor.

Last Updated: July 1, 2017

Features
Log structure
Equipment colors
Floor plans
Equipment and specifications

Features

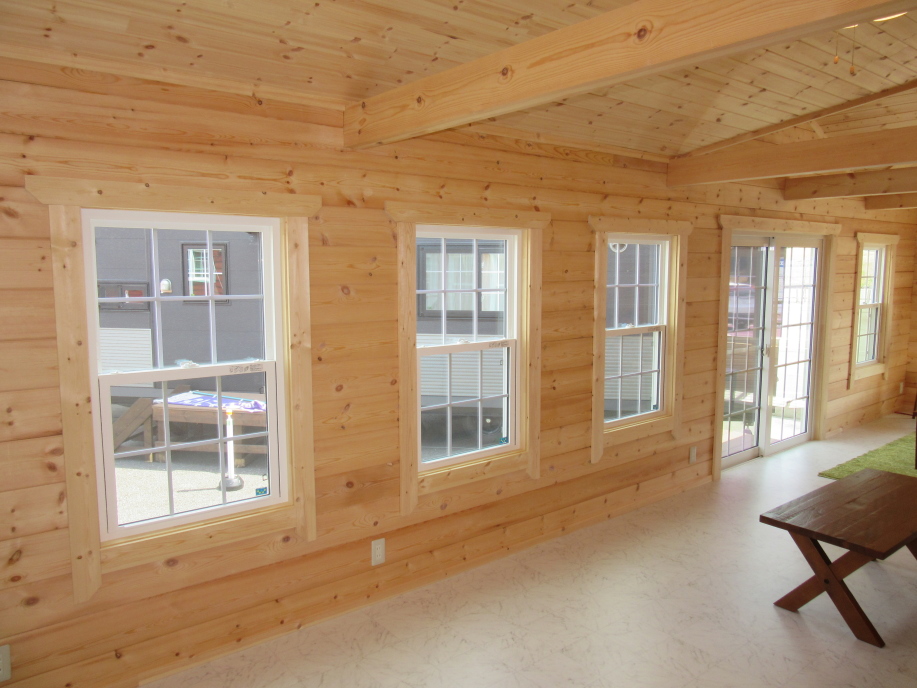

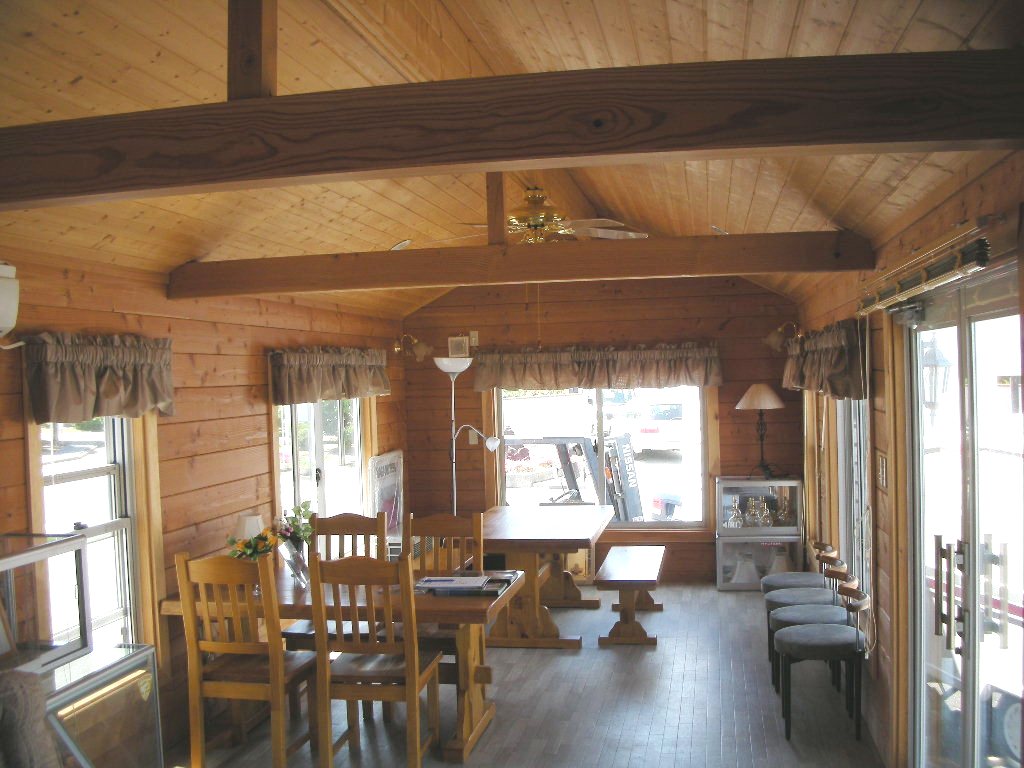

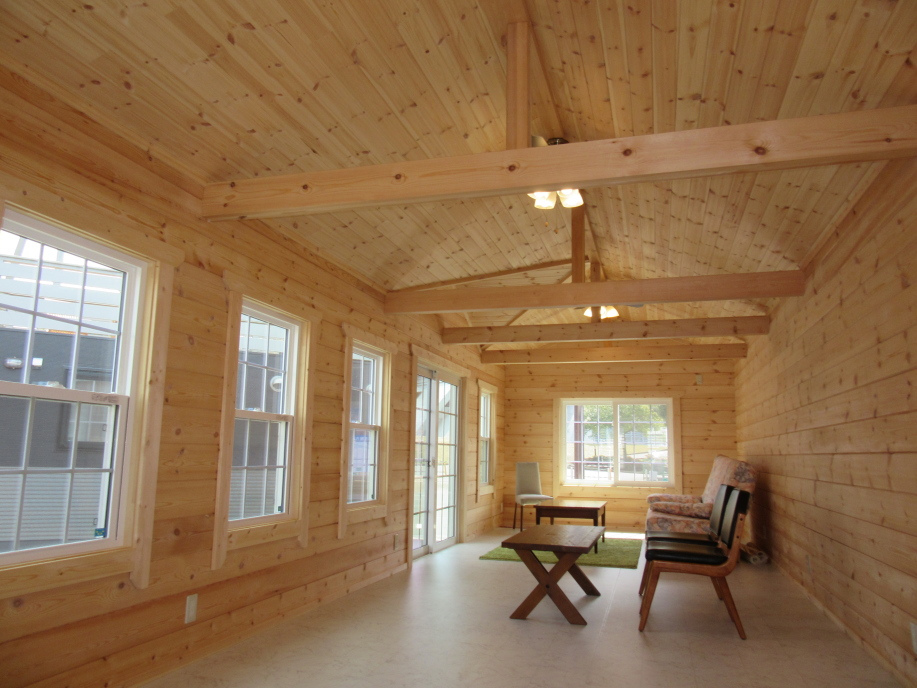

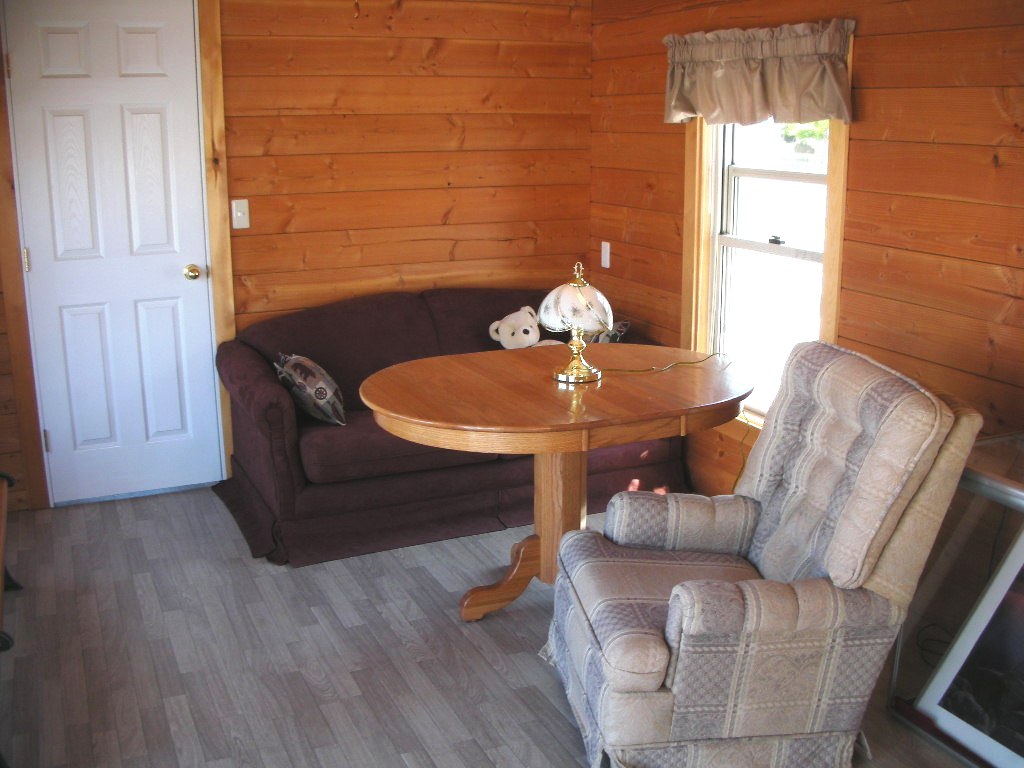

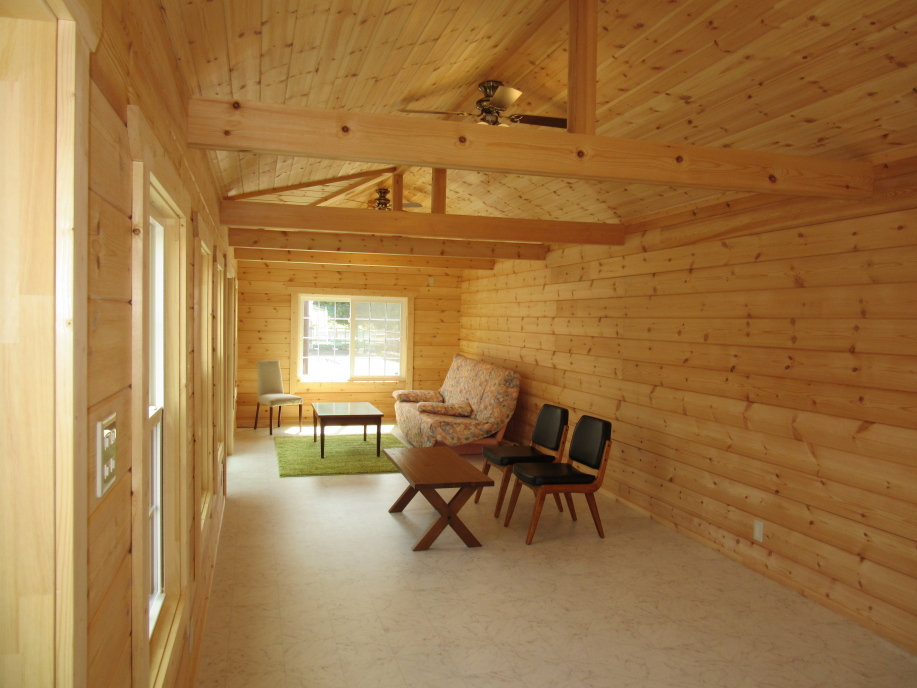

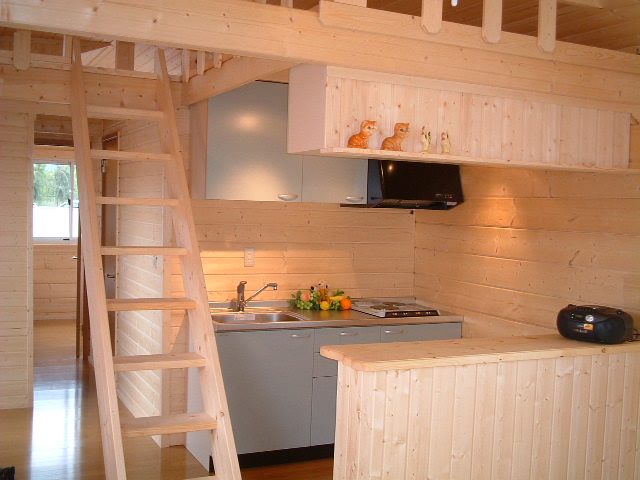

A log model provides a comfortable indoor space with warmth and smell of wood.	Warm atmosphere of wood	Indoor of a log model	High-airtight and high-insulating vinyl sash double-pane windows with Low-E glass

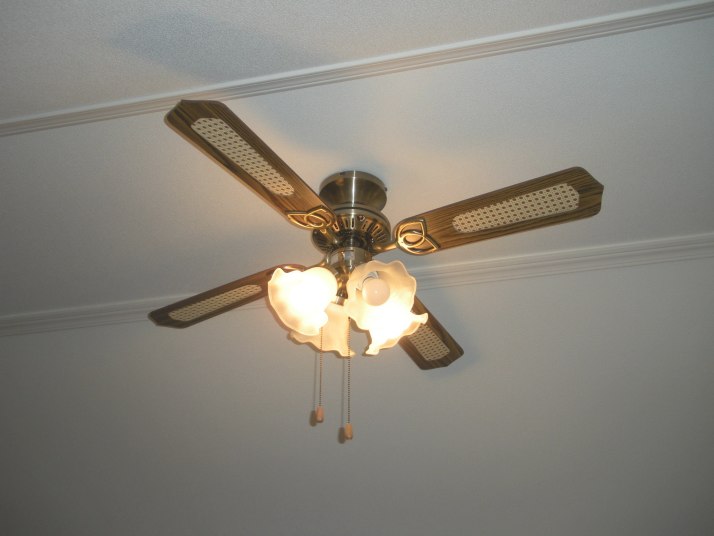

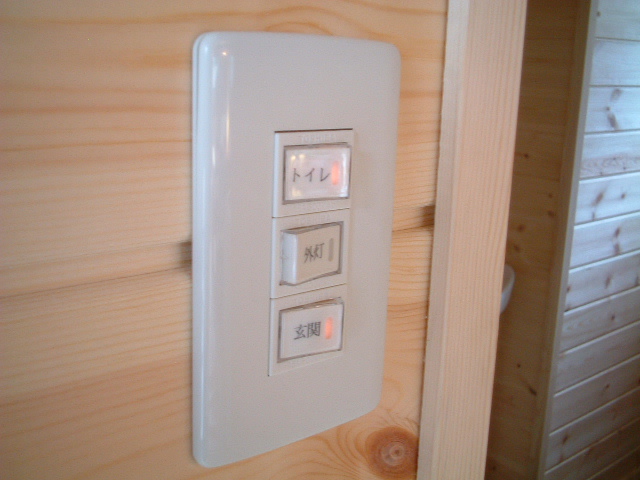

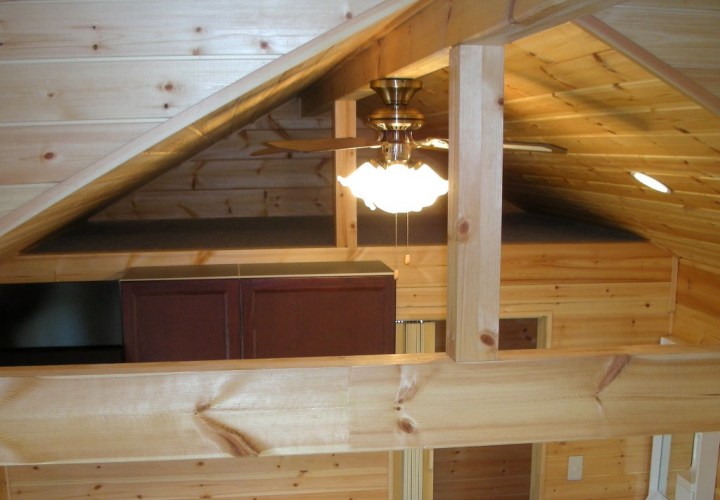

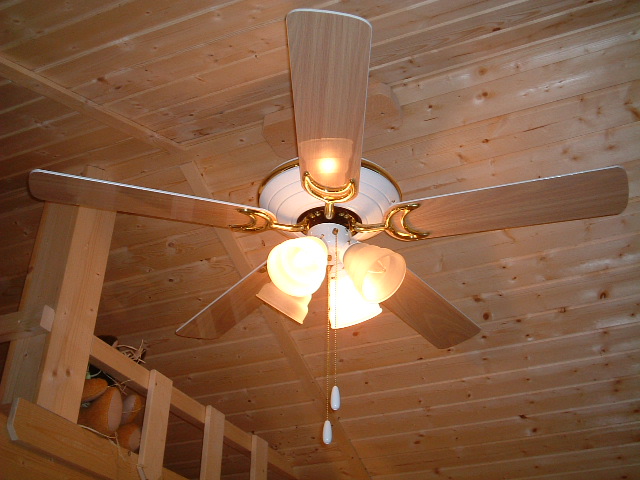

Ceiling fan with lights	Brightness: 2 or 4 lights Fan: 2-speeds, reversible rotating function	Light switches incorporating a small lamp, easily to locate the switches in the dark	Logs and beams carefully assembled are sturdy.

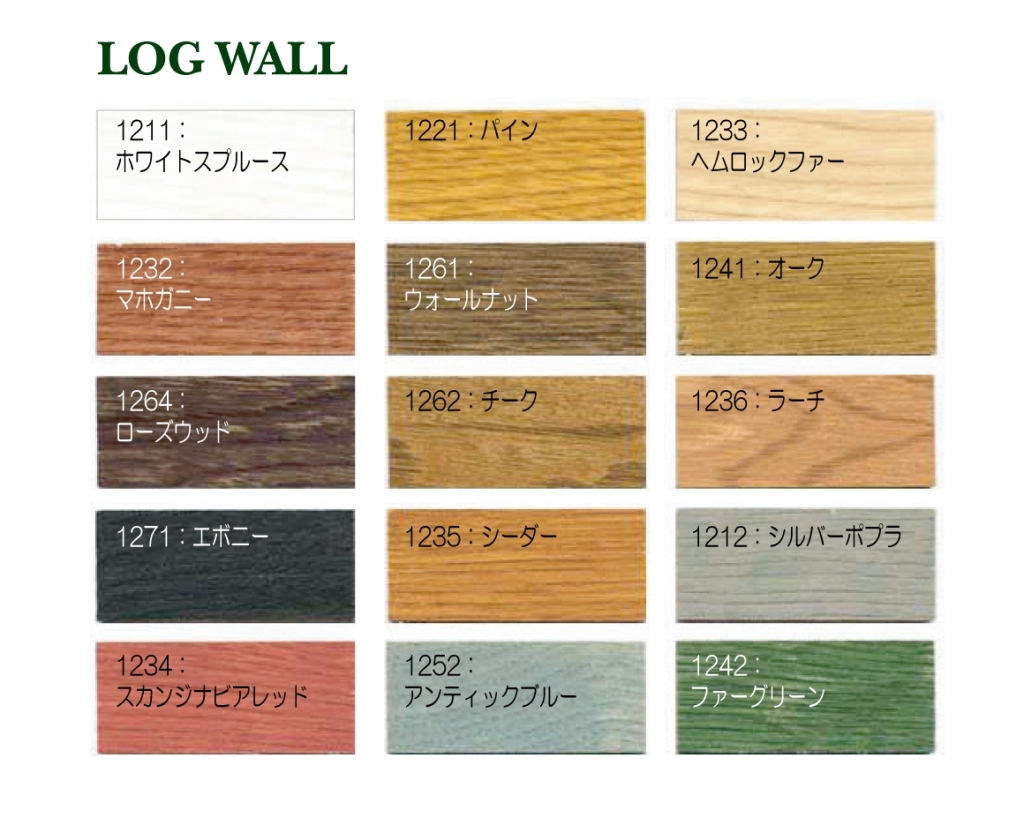

Exterior colors of Meister series

Exterior walls are painted with OSMO Color which is an environmentally friendly and safe coating made in Germany.

(Colors on photos below may be different from actual colors because of model year, sunshine conditions, performance of cameras, etc.)

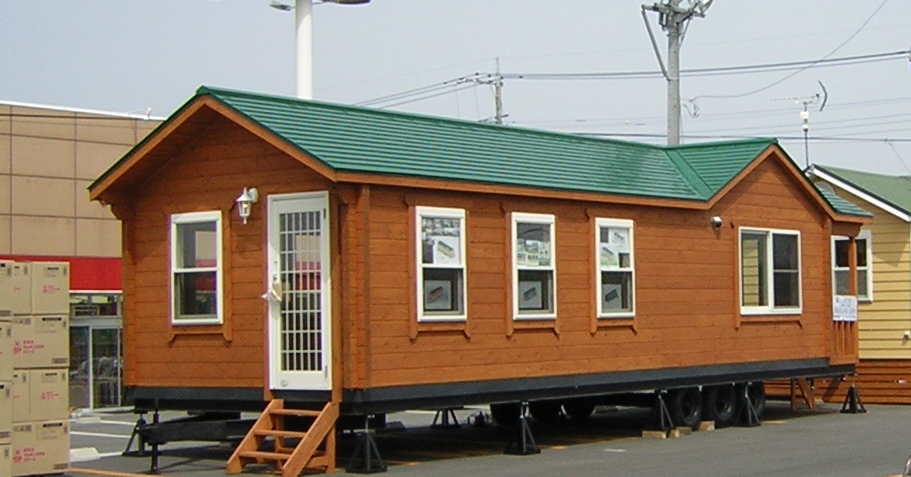

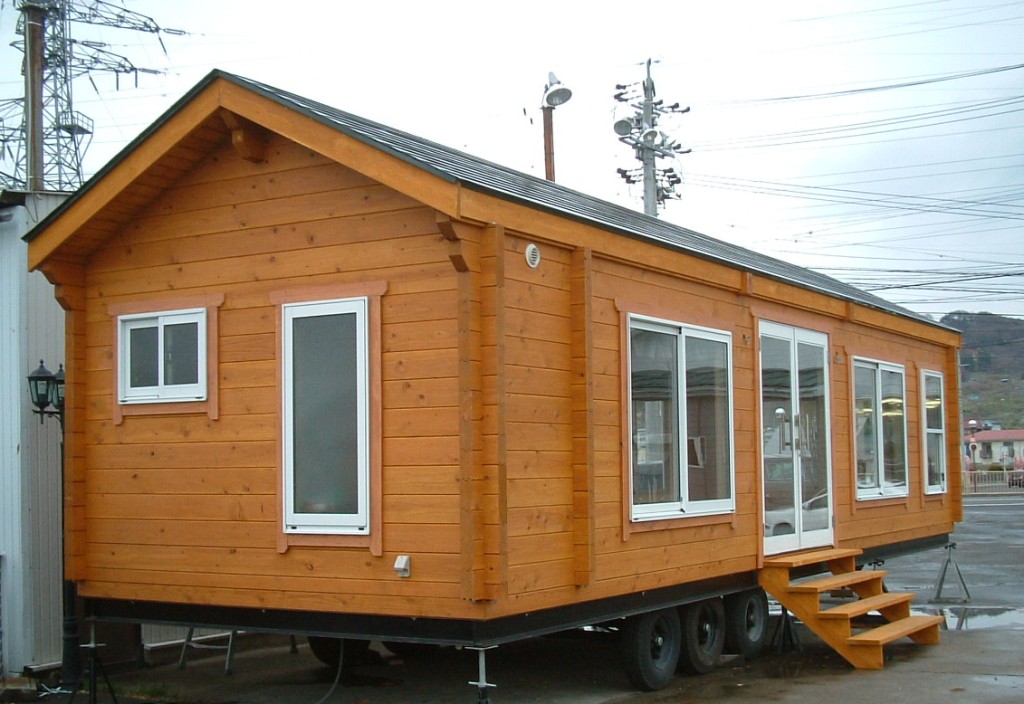

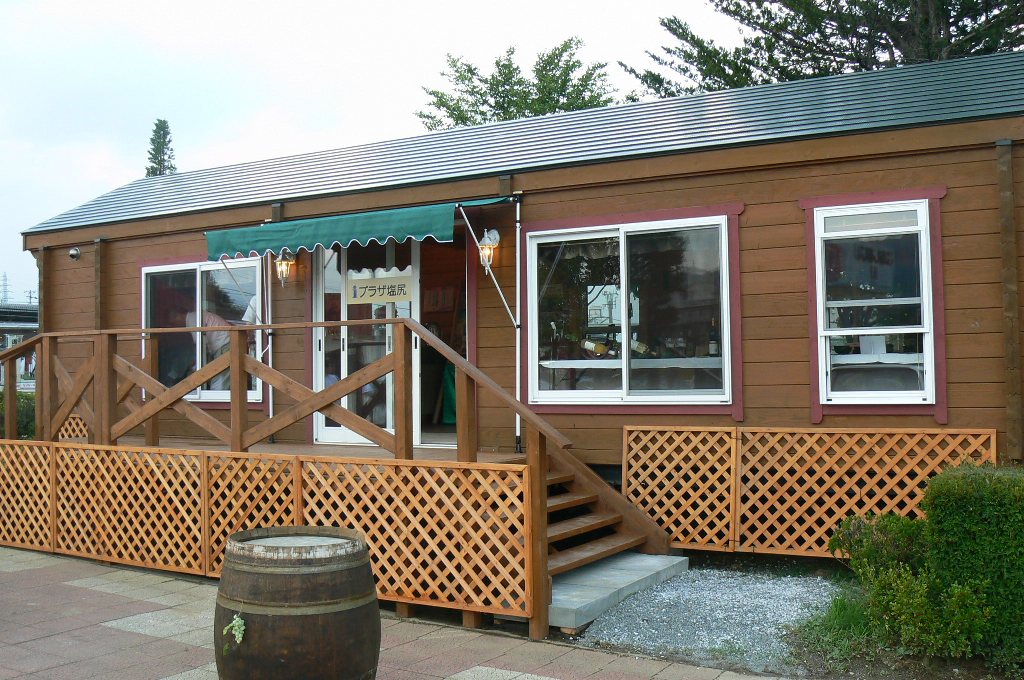

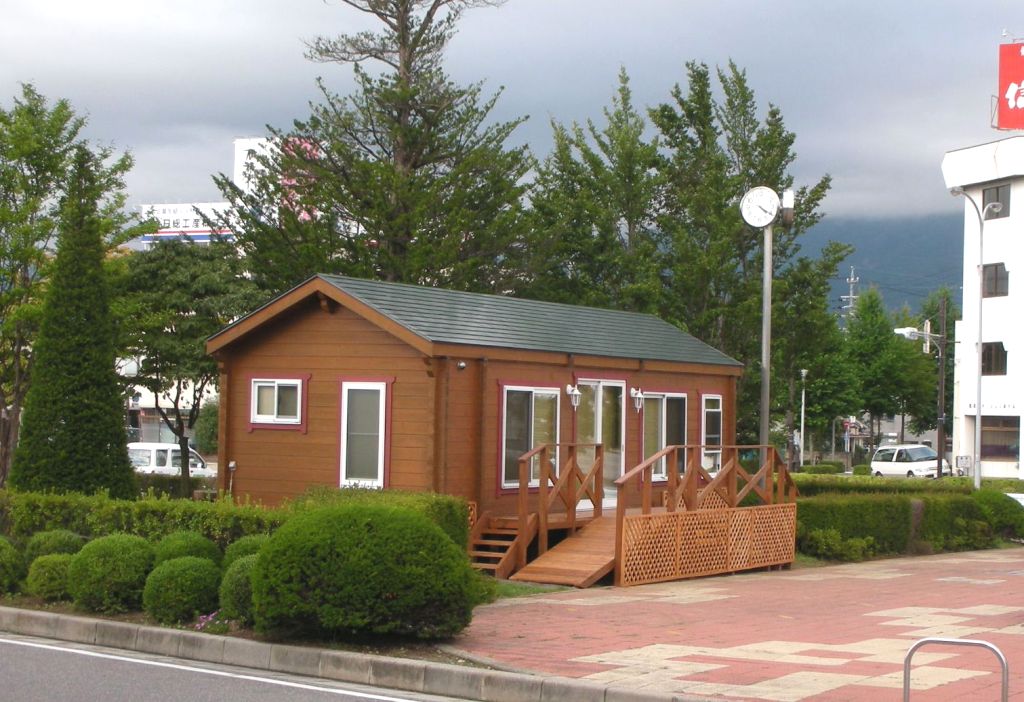

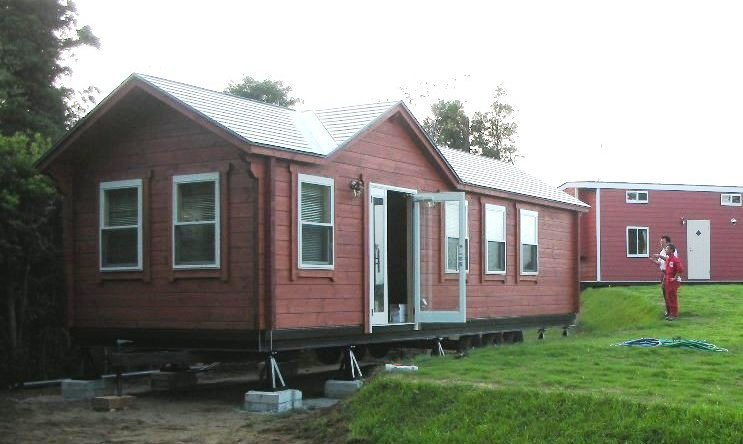

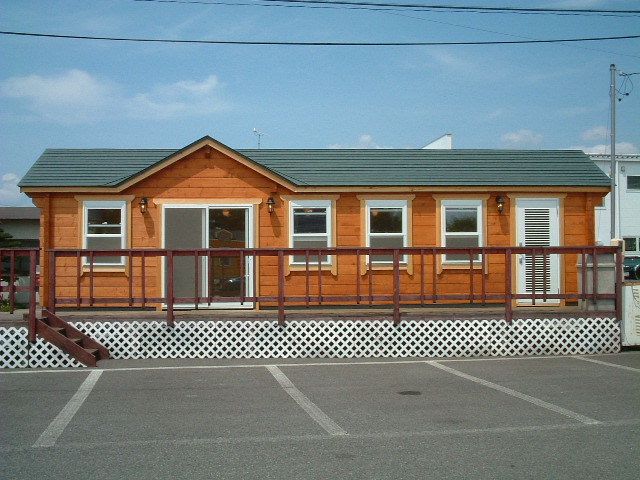

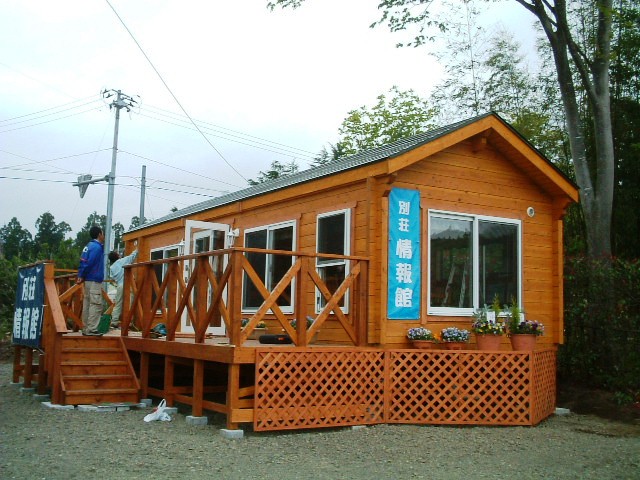

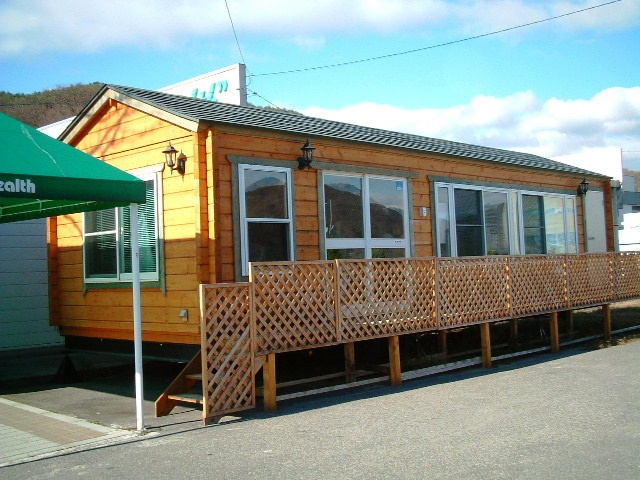

Pine (Office)	Pine (Souvenir shop)	Pine (Goods shop)	Pine (Office)	Cedar (Local specialty shop)

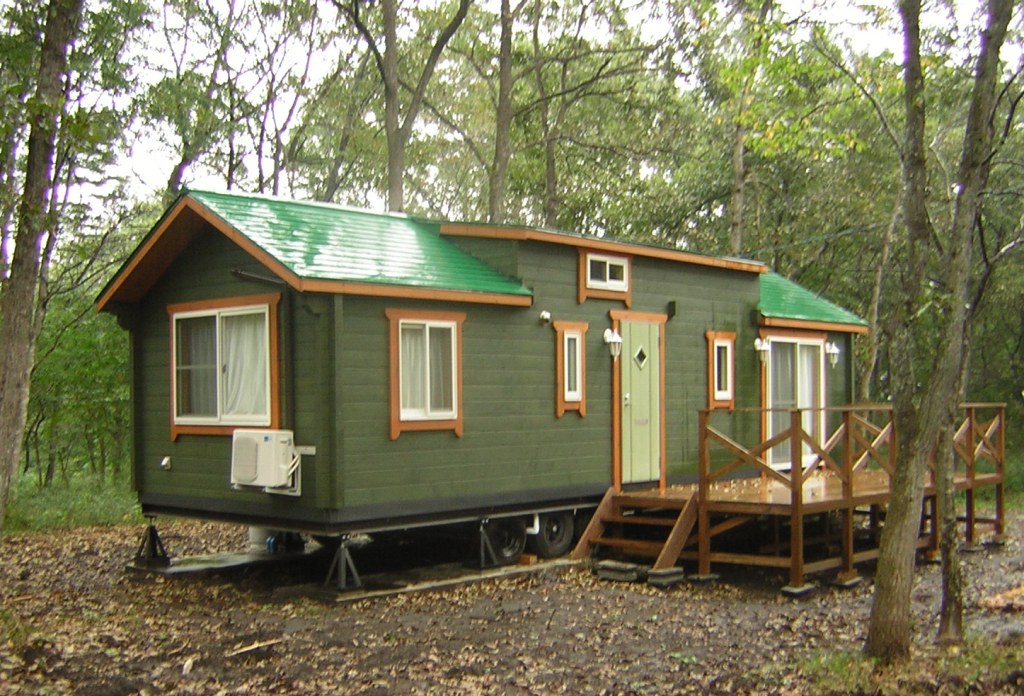

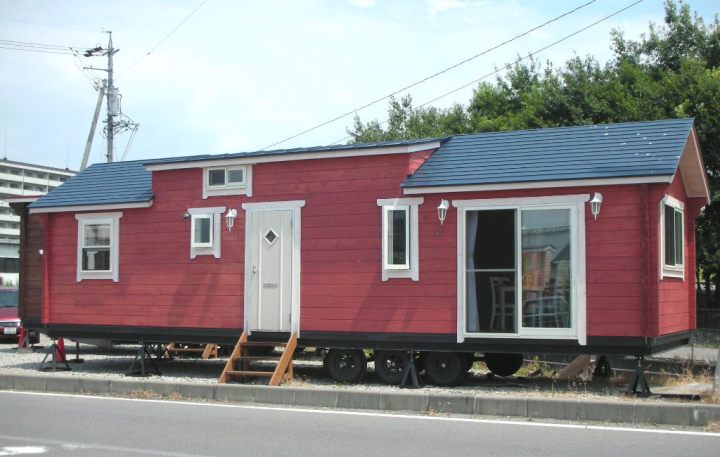

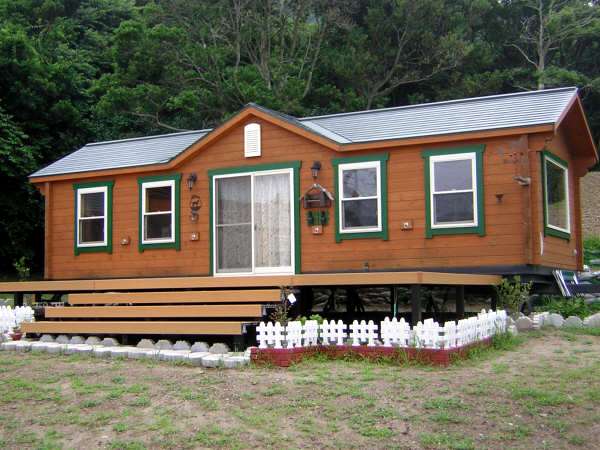

Cedar (Dog run)	Cedar (Local specialty shop)	Walnut (Office)	Mahogany (Accommodation)	Fir Green (Cottage)

We manufacture each mobile home with great care, pursuing good quality.

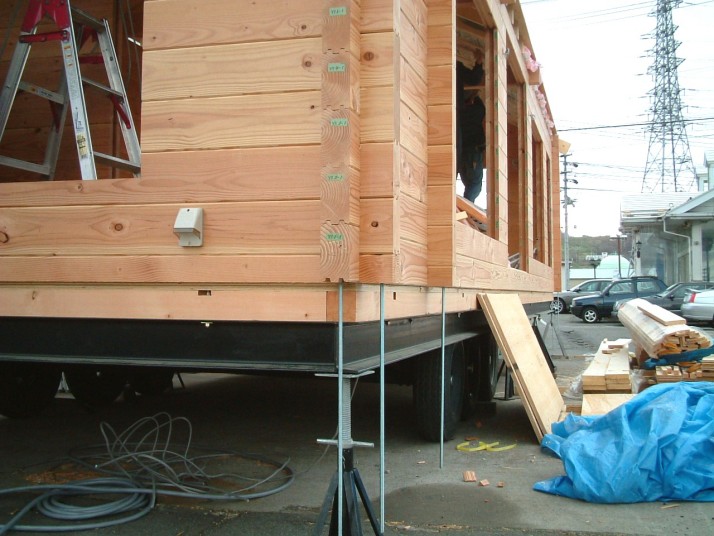

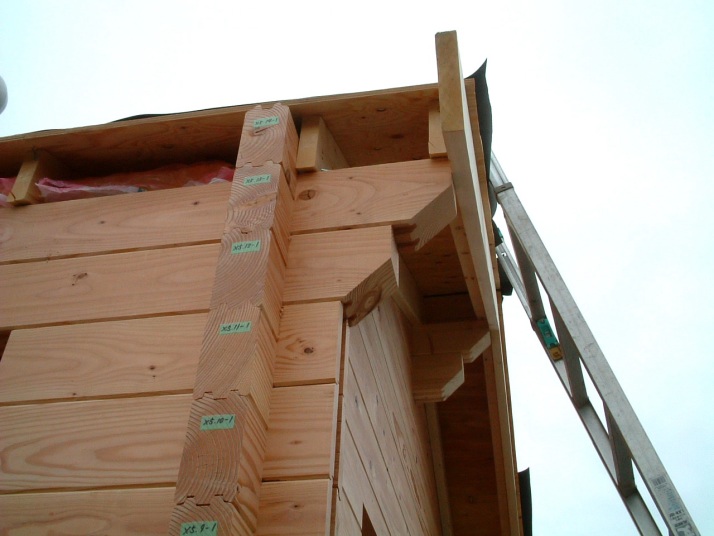

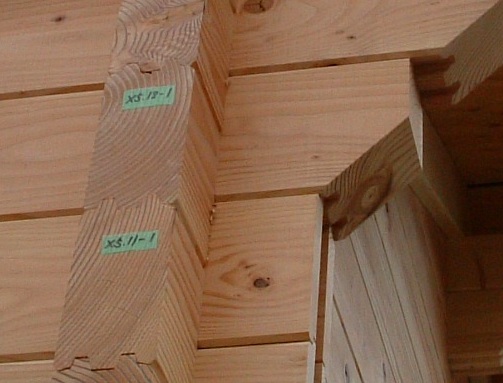

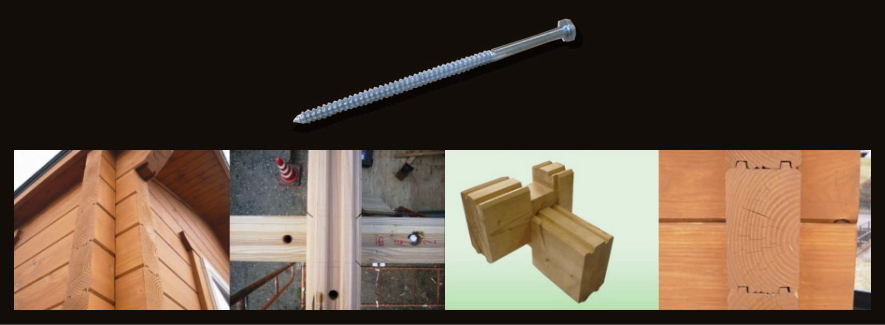

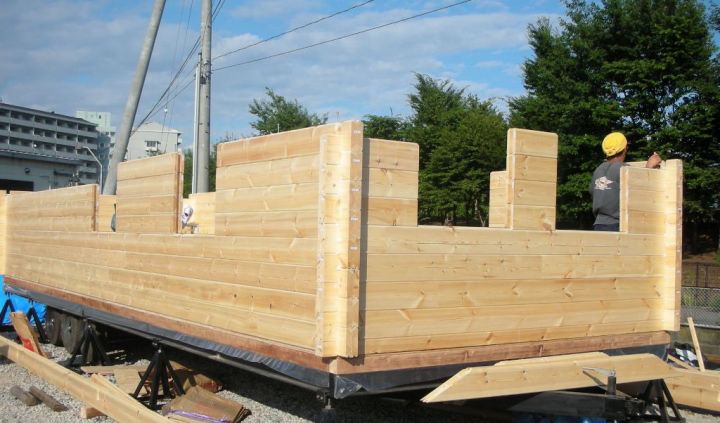

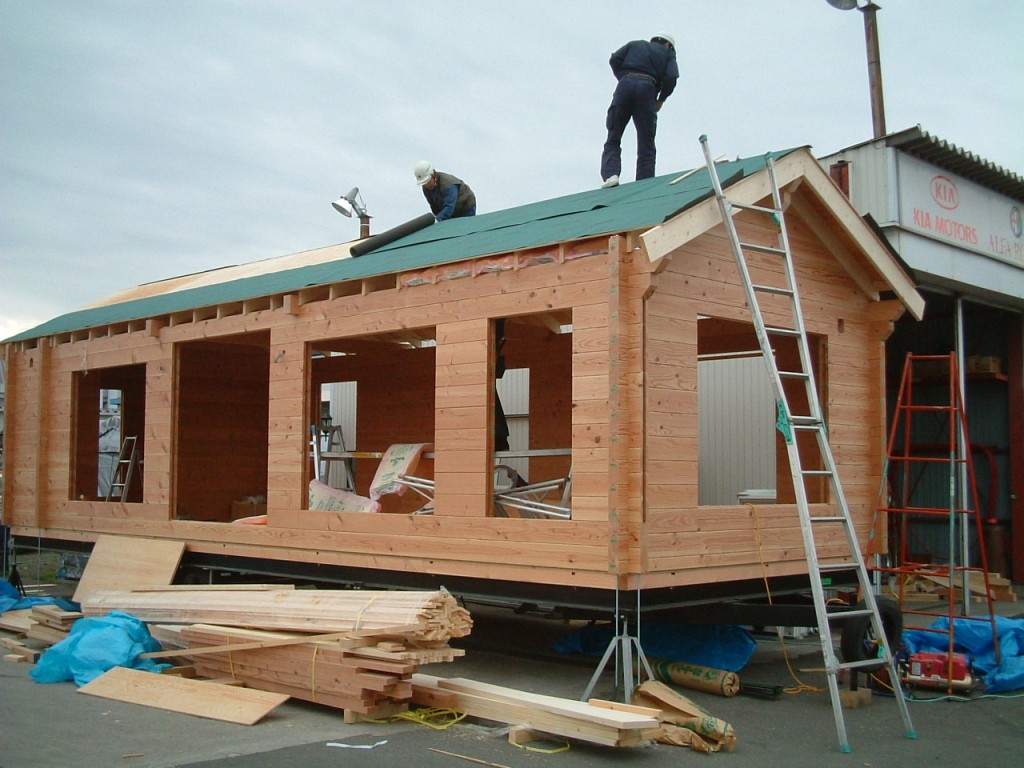

Assembling up logs carefully	Sturdy, lightweight and flexible structure is important.	Notch construction method	Important work continues after walls are built up.

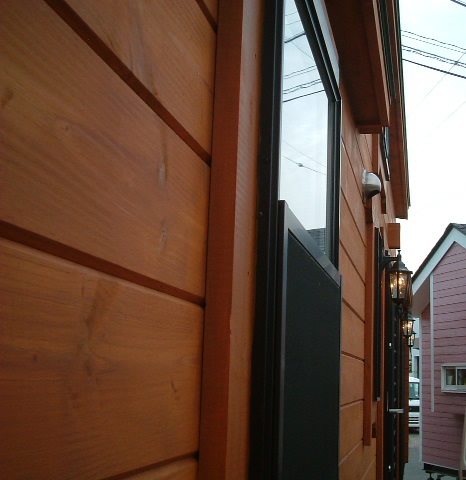

Logs of 88-95mm x 180mm	The waterproofing of the window circumference is made in consideration of settling of logs.	Log models require maintenance after purchase.	Log interior with rich smell of wood and warmth

Equipment colors

Exterior wall: OSMO Color (nonpolluting paint)

Floor
Standard: Vinyl flooring (C.F. sheet), 6 colors
Option: Wooden flooring, 3 colors

Galvalume roof: 12 colors

Floor plans

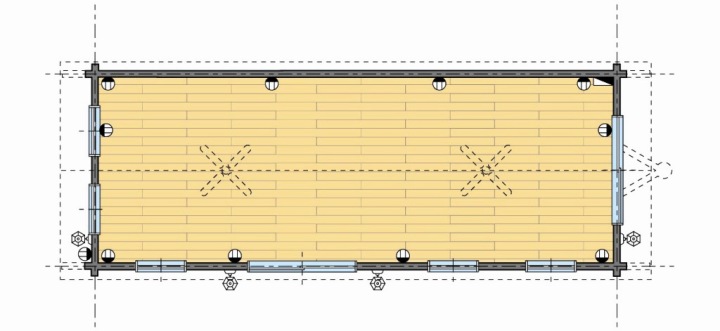

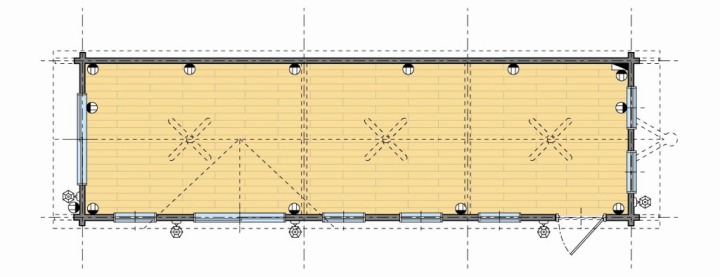

M1032: 10 m x 3.2 m

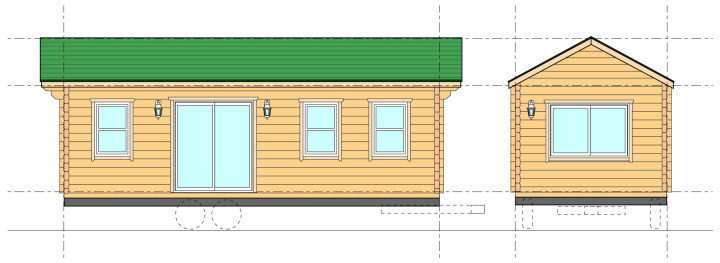

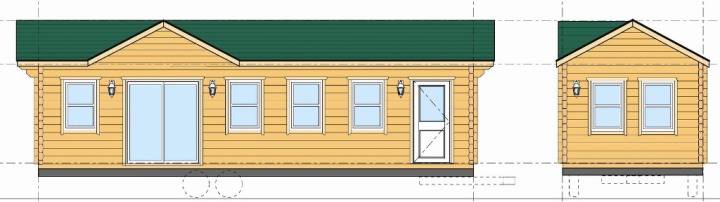

M1032: elevation view

M832: 8 m x 3.2 m

M832: elevation view

"Meister" Equipments and specifications [Shop-type log model]
Standard: Std / Optional: Opt
Model		Meister
Model number		M834	M934	M1034	M1134
Body length		8m	9m	10m	11m
Price (tax-excluded) / Unit: JPY		7,800,000	8,000,000	8,200,000	8,500,000
Price (tax-included) / Unit: JPY		8,560,000	8,800,000	9,020,000	9,350,000
EXTERIOR
	[Roof] Galvalume roof	Std	Std	Std	Std
	[Wall] Log (of North America or North Europe)	Std	Std	Std	Std
	[Exterior wall paint] OSMO Color	Std	Std	Std	Std
	Vinyl sash double-pane windows with Low-E glass	Std	Std	Std	Std
	Patio door	Std	Std	Std	Std
	Side door	Std	Std	Std	Std
	Porch lights	Std	Std	Std	Std
	Outdoor waterproofing outlet	Std	Std	Std	Std
INTERIOR & EQUIPMENT
	[Interior Wall] Log	Std	Std	Std	Std
	[Floor] Vinyl flooring (C.F.sheet) (standard 6 colors)	Std	Std	Std	Std
	Stylish window casings	Std	Std	Std	Std
	Ceiling fan with lights	Std (2)	Std (2)	Std (3)	Std (3)
	Wall outlets	Std	Std	Std	Std
	50 amps breaker	Std	Std	Std	Std
STRUCTURE
	Frame of channel steel	Std	Std	Std	Std
	Axles with rear brakes	Std	Std	Std	Std
	Log structure	Std	Std	Std	Std
	Truss roof (snow-resistant)	Std	Std	Std	Std
	Heat insulating material for cold districts	Std	Std	Std	Std
SIZE
	Body length (cm)	800	900	1000	1100
	Body width (cm)	340	340	340	340
	Overall width (including eaves) (cm)	350	350	350	350

NOTES: Specification may change due to makers' specifiation changes or supply situations of parts or materials. Photos shown in this page may include optional equipment and specifications, or props that are for photography purposes only. Colors shown may vary due to reproduction and printing processes. Floor plan images may include optional furniture or home appliances depicted as arrangement examples.

* Because settling will occur to a log model, the whole wall will decrease about 3 centimeters in height during the first 1–2 years after construction.

* Log models are manufactured by a log construction method special for mobile homes.
