SKY
As its name, this model provides a place where users can feel the sky closer and enjoy outdoor. A rooftop deck is designed as a new space on a mobile home, and it is accessible from indoor. It would be a useful space for glamping or shops, etc. Last Updated: November 20, 2017 |
 |
 |

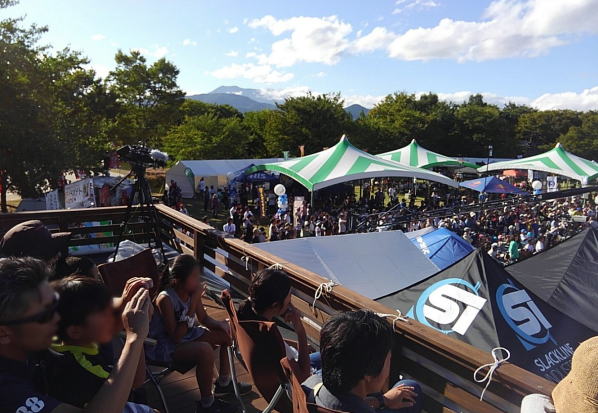

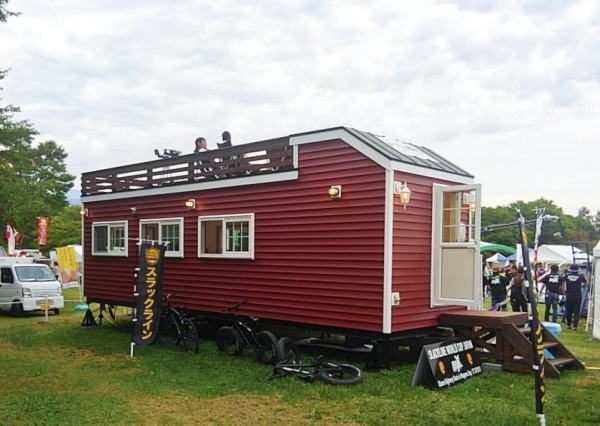

| This model was used as a managing office and media center at 2017 Slackline World Cup Japan. |

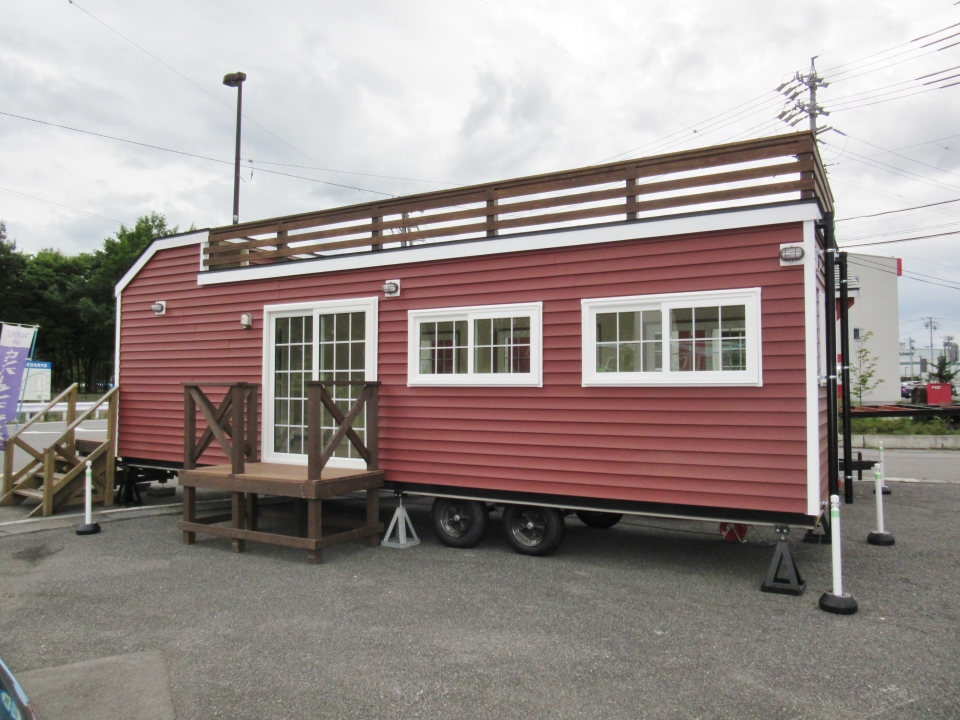

  Sturdy rooftop structure, structure accessible from the indoor to rooftop
|
Comfortable indoor space
|
Small-size shop-type model with a rooftop
|

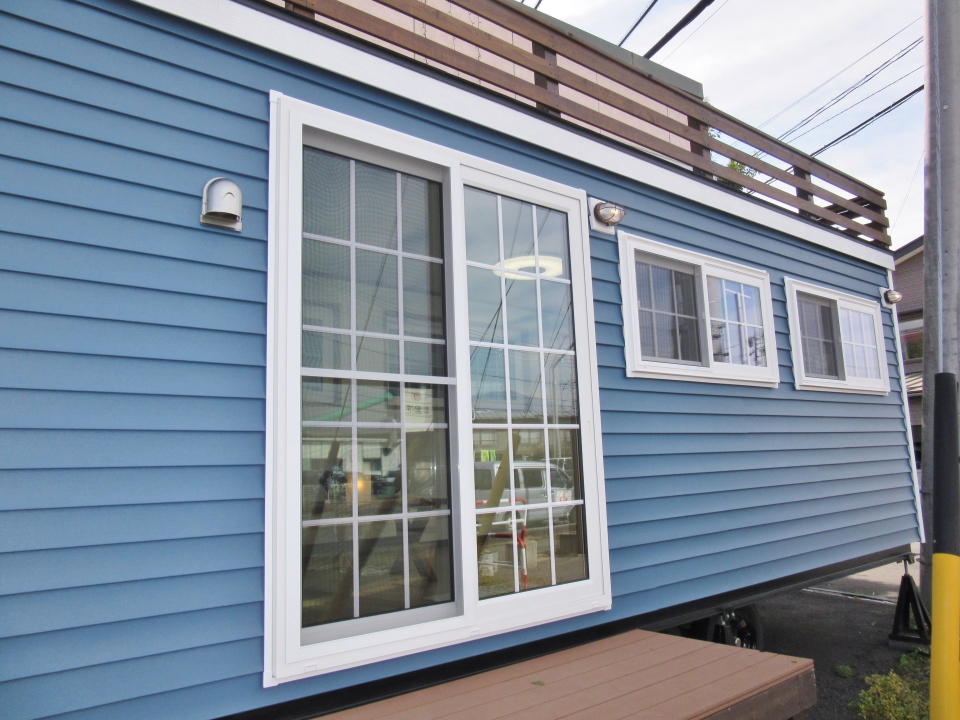

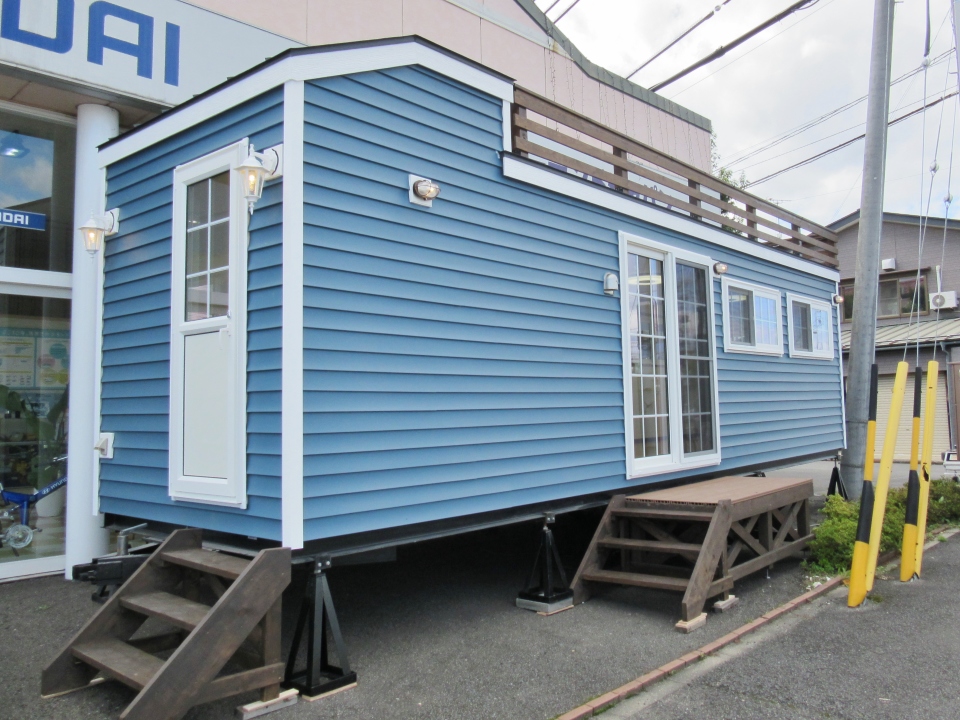

Vinyl siding exterior walls
|
Vinyl sash double-pane windows (high-airtight and high-insulation)
|

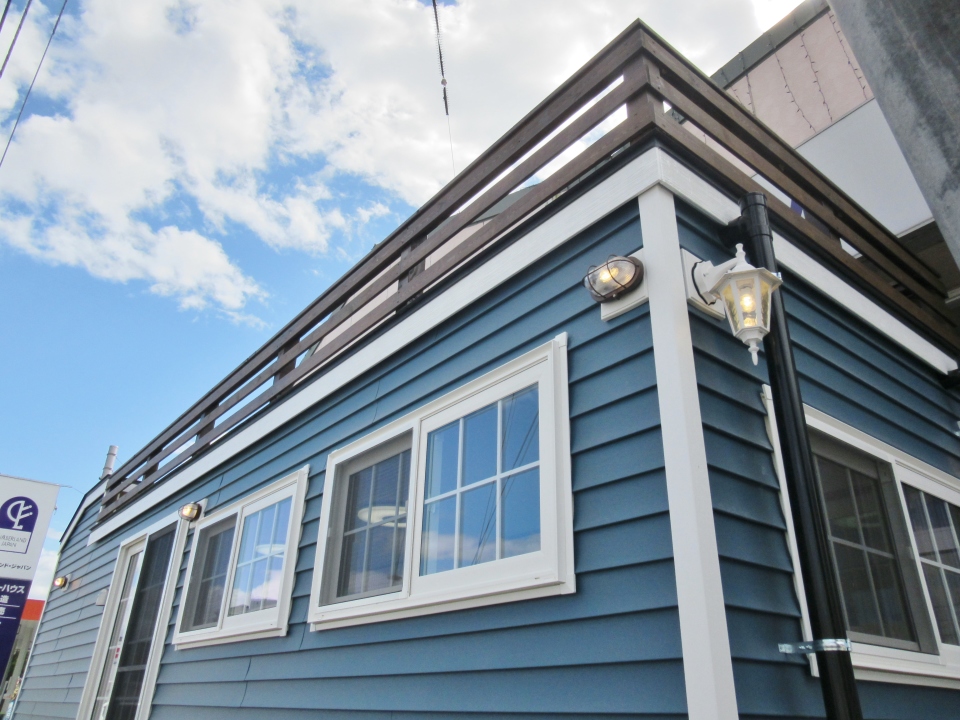

Stylish porch lights and marine lights
|

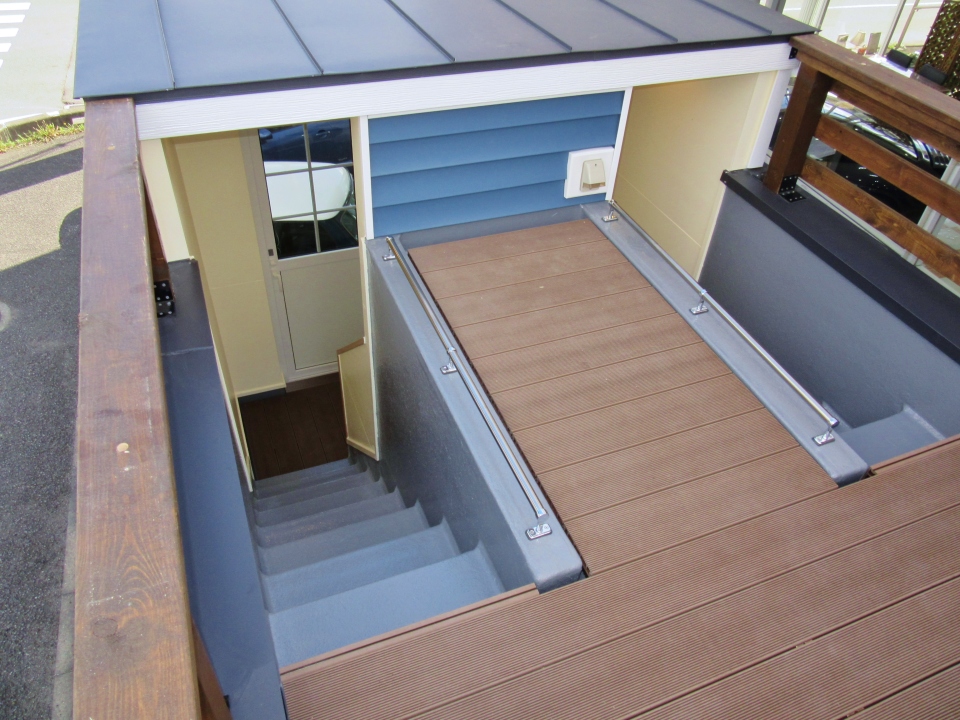

The rooftop is accessed by stairs. (Two stairways)
|

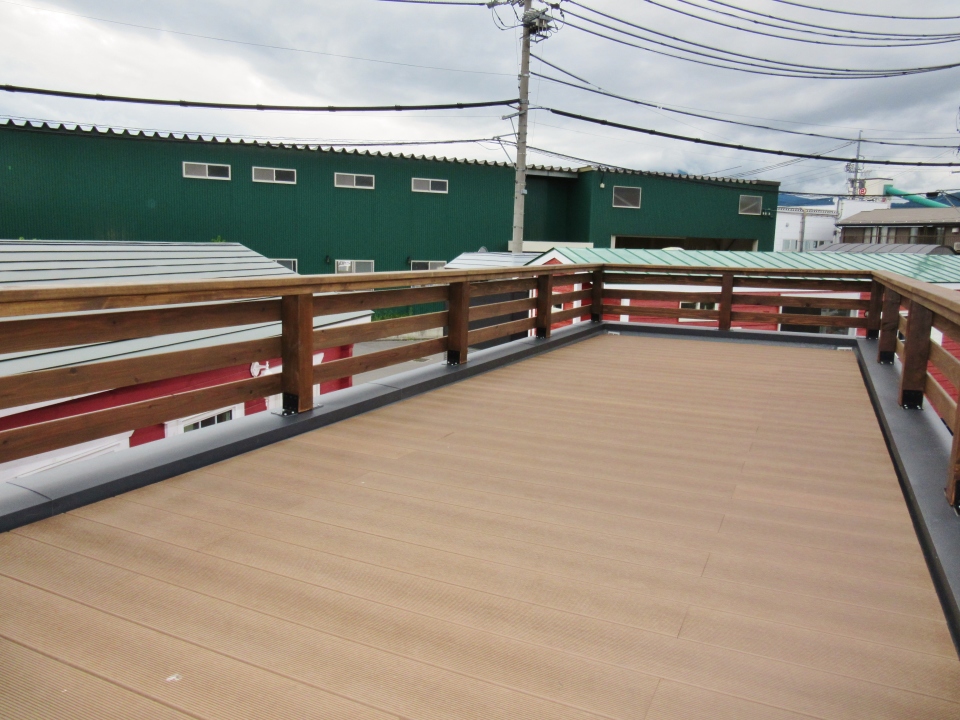

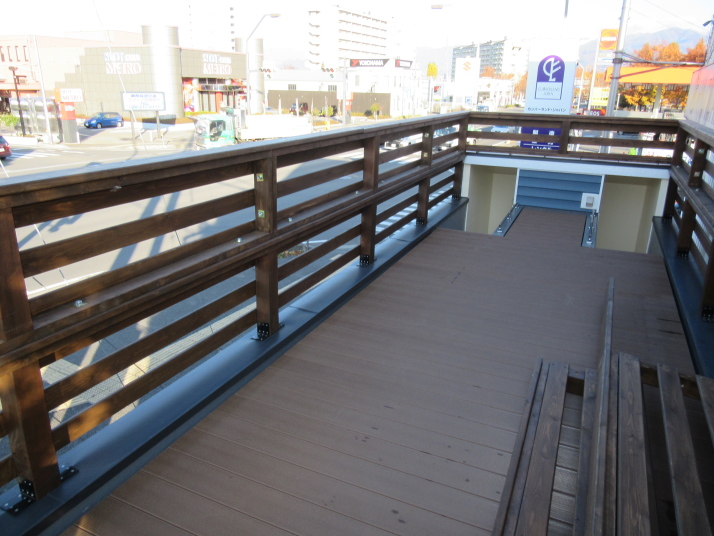

Rooftop deck with waterproofing deck material
|

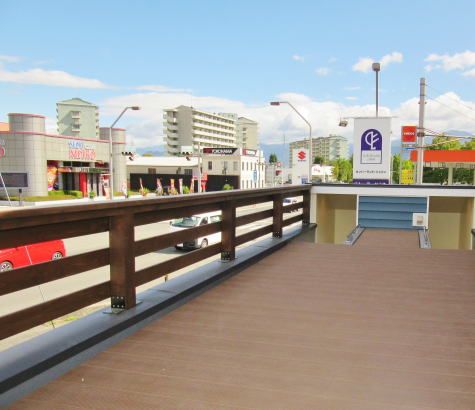

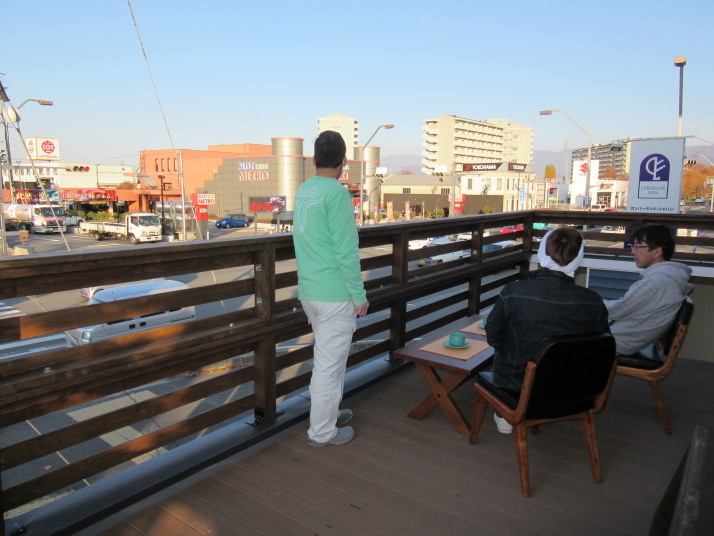

Open-air rooftop deck
|
Option: additional handrail fence (height 60cm)
(Total height of fence including additional fence will be 110cm.) |

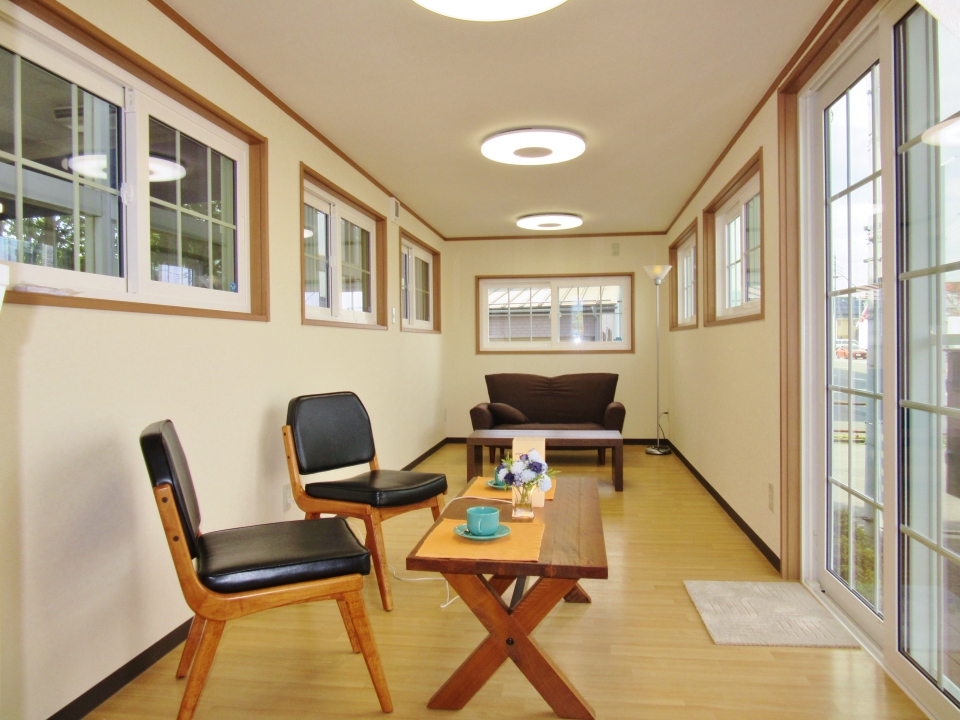

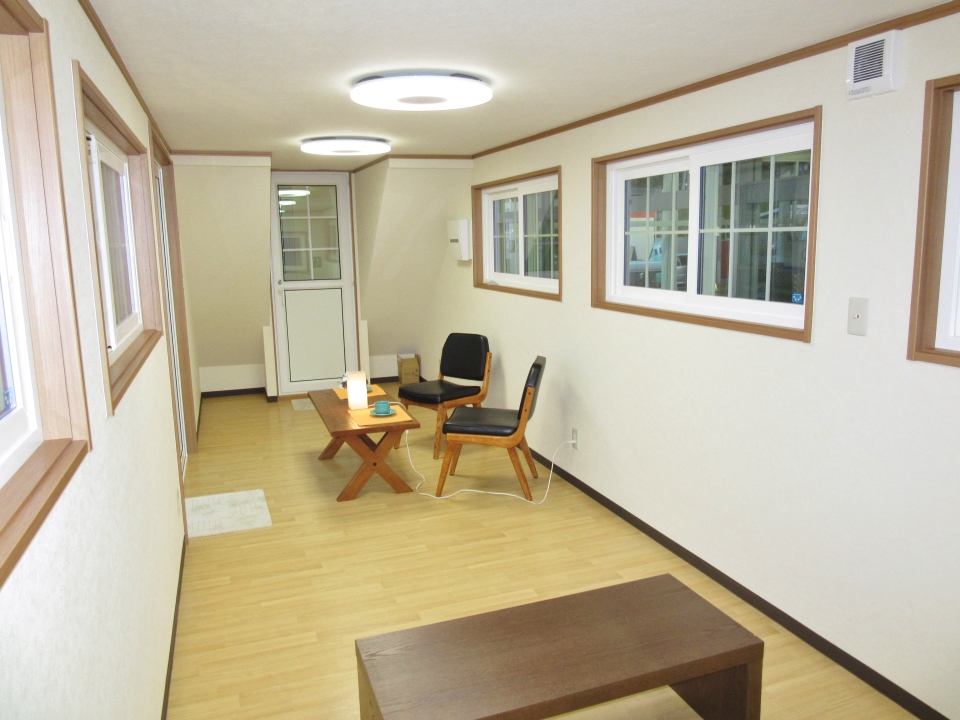

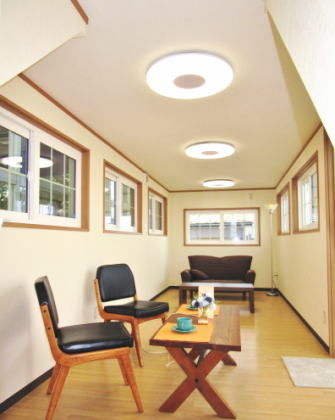

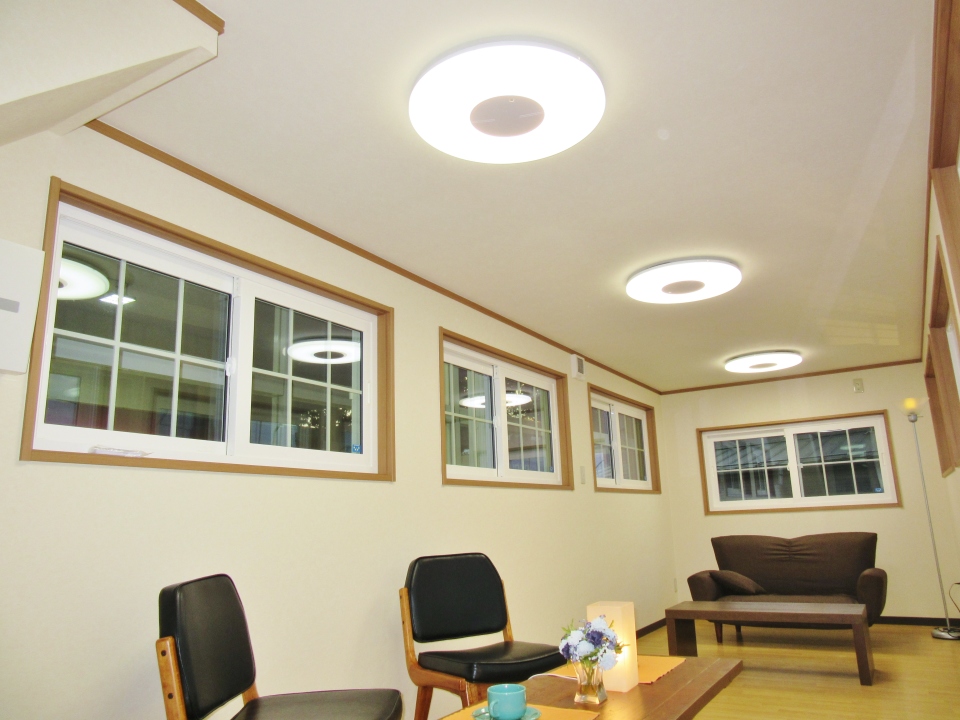

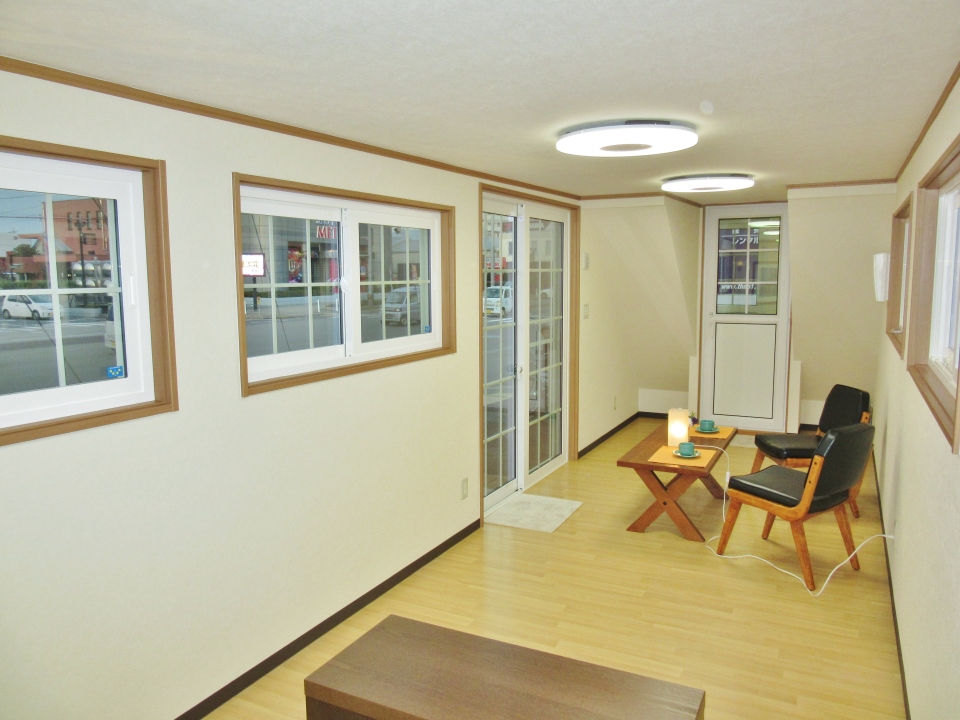

Comfortable indoor space
|
LED ceiling lights
|

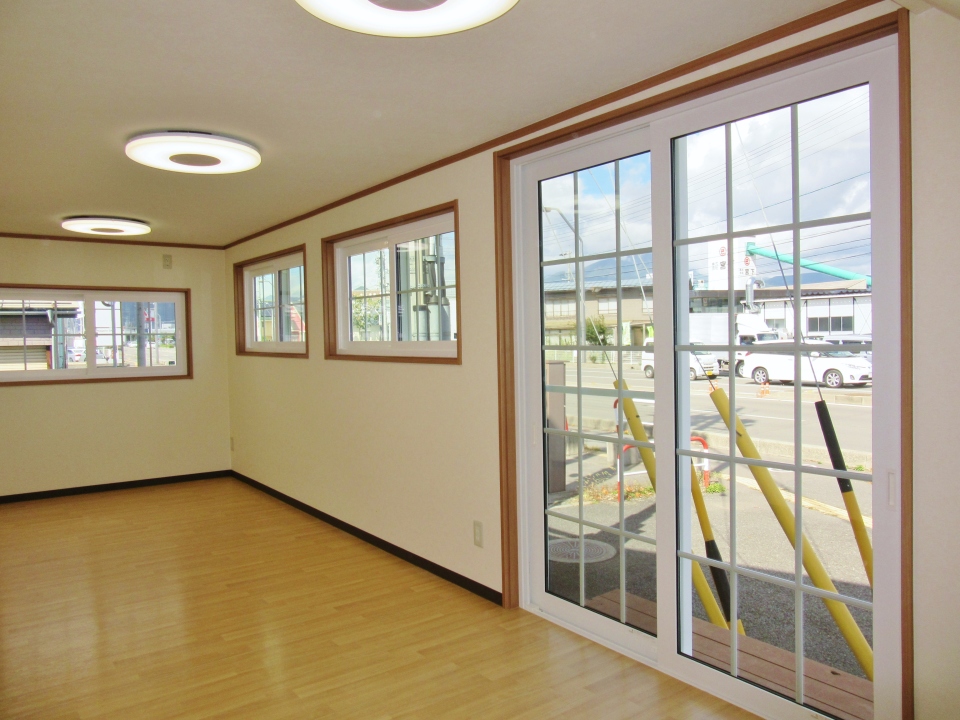

Energy-efficient windows and patio door for cold region
|
Interior finish with white wallpaper
|

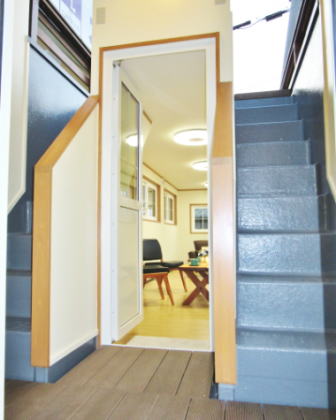

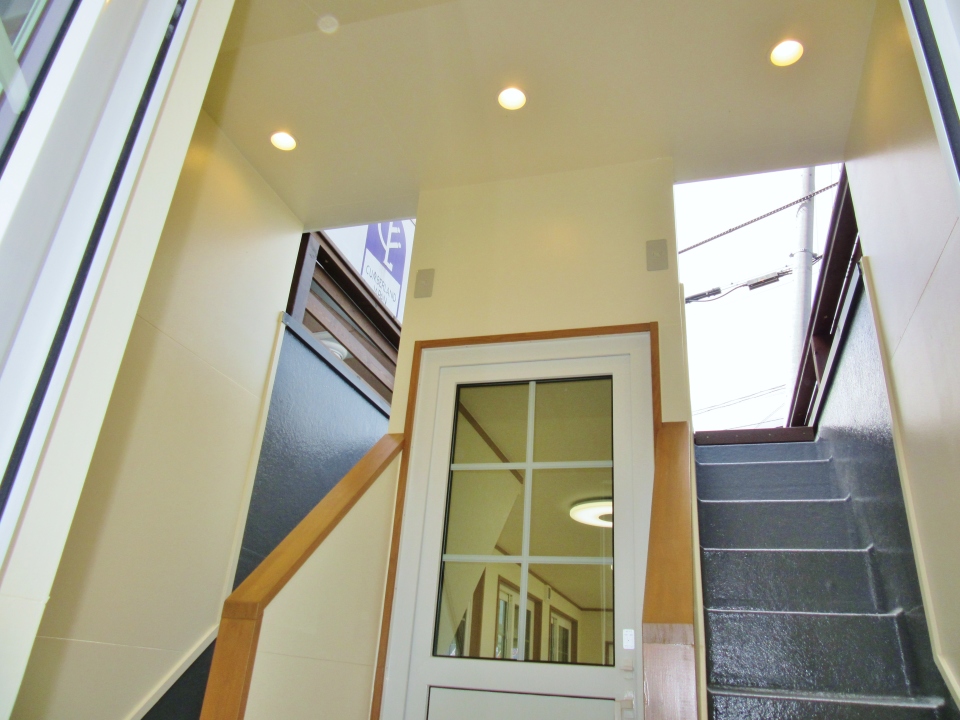

There is a door partitioning a room and stairs.
|

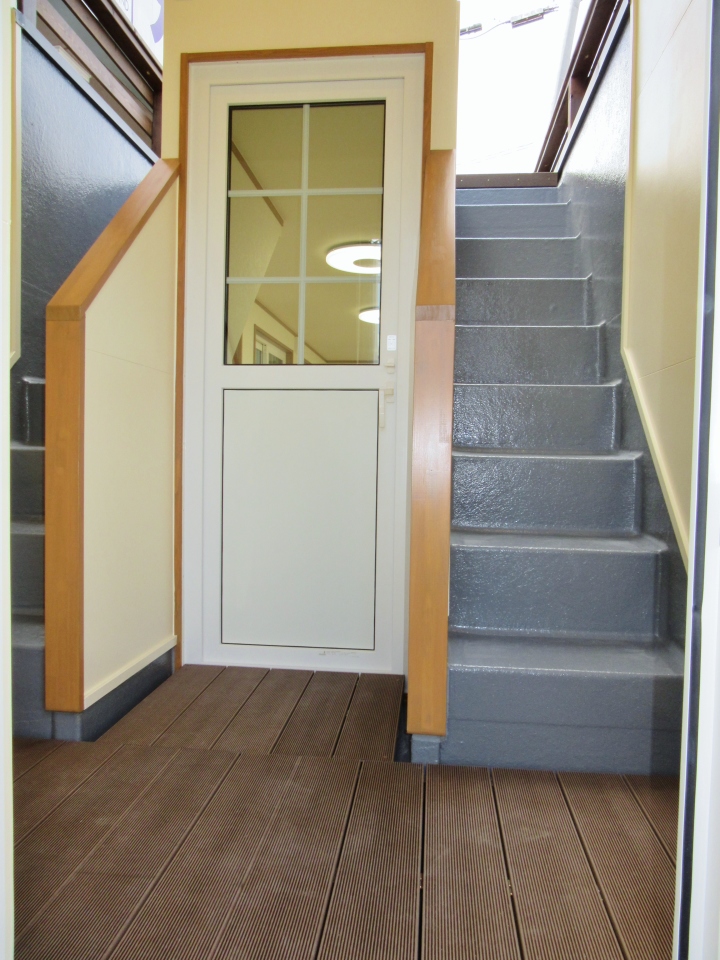

Stairs accessing to a rooftop (FRP waterproofing)
|
Downlights
|

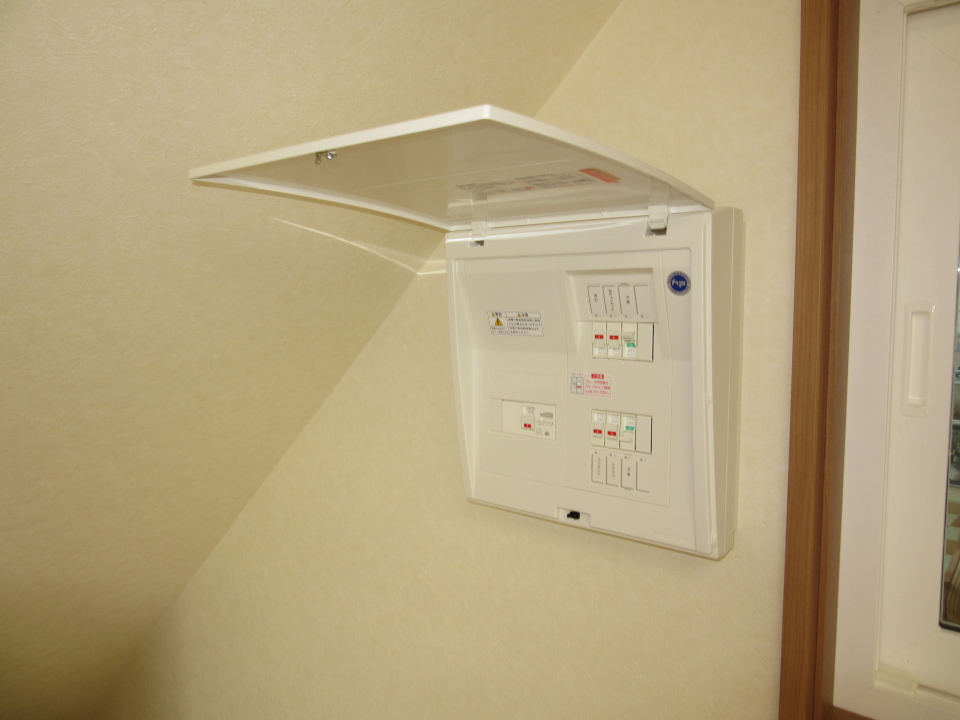

50 AMP breaker
|
|
 |
| Option: Two-tone color +80,000 yen (tax-excluded)
|
2.4m-wide model with roof top. Length is available from 8m to 10m (by one meter).
|

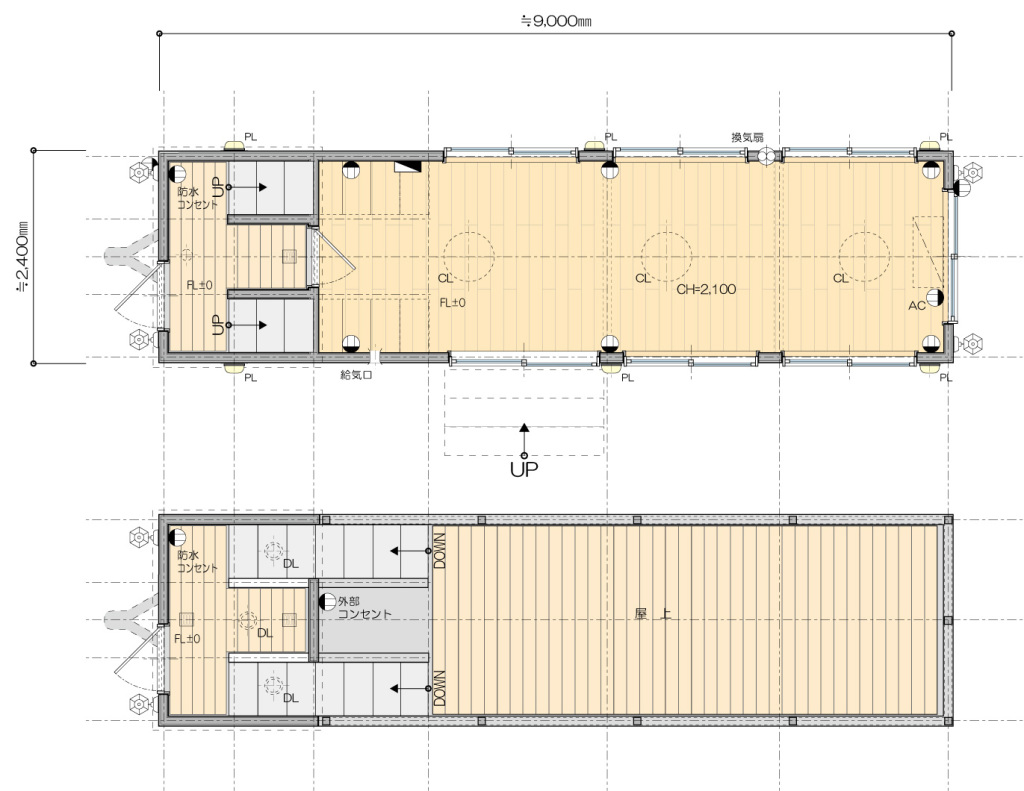

SKY924 : L 9m x W 2.4m, with rooftop
 |

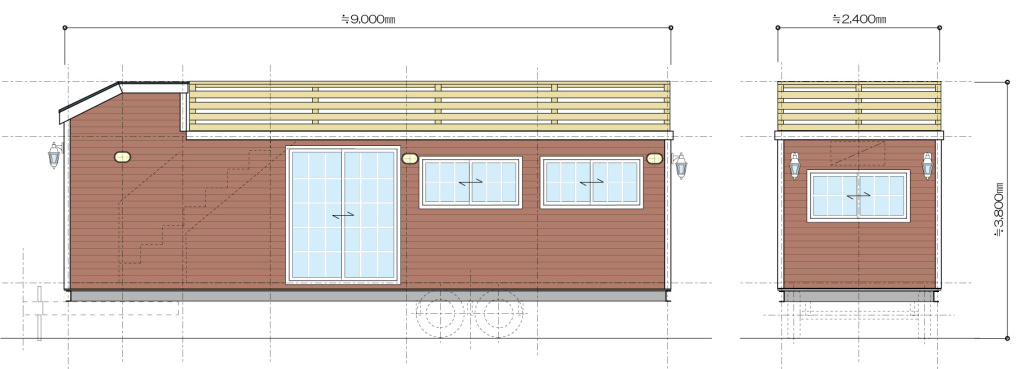

SKY924 (elevation plan)
 |
| "SKY" Equipments and specifications [Shop-type model with rooftop (2.4m-wide)] | |||||
|---|---|---|---|---|---|
| Standard: Std / Option: Opt | |||||
| Model | SKY | ||||
| Model number | SKY824RT | SKY924RT | SKY1024RT | ||
| Price (tax-excluded) / Unit: JPY | 8,300,000 | 8,500,000 | 8,700,000 | ||
| Price (tax-included) / Unit: JPY | 9,130,000 | 9,350,000 | 9,570,000 | ||
| Length | Option unit-price (tax-excluded) |
8m | 9m | 10m | |
| EXTERIOR | |||||
| Vinyl siding exterior walls | Std | Std | Std | ||
| Vinyl frame and double-pane windows with Low-E glass | Std | Std | Std | ||
| Patio door | Std | Std | Std | ||
| Porch lights (4) | Std | Std | Std | ||
| Exterior marine lights (6) | Std | Std | Std | ||
| Waterproofing outdoor outlet | Std | Std | Std | ||
| Rooftop: waterproof deck, handrail fence, an outdoor outlet, stairs (FRP) (two stairways) | Std | Std | Std | ||
| OPT | Additional handrail fence (height 110cm) | 400,000 | Opt | Opt | Opt |
| Galvalume siding | 800,000 | Opt | Opt | Opt | |
| INTERIOR | |||||
| White wallpaper finish interior | Std | Std | Std | ||
| Vinyl flooring (C.F. sheet) | Std | Std | Std | ||
| LED ceiling lights | Std | Std | Std | ||
| Wall outlets | Std | Std | Std | ||
| Air-conditioner outlet | Std | Std | Std | ||
| Ventilating fan | Std | Std | Std | ||
| Air inlet port | Std | Std | Std | ||
| 50 amp circuit breaker (made in Japan) | Std | Std | Std | ||
| STRUCTURE | |||||
| Heavy duty chassis (channel steel) | Std | Std | Std | ||
| Stepped chasiss (patented) | Std | Std | Std | ||
| Axles with impact absorbing linkage | Std | Std | Std | ||
| 2x4 structure | Std | Std | Std | ||
| Waterproofing sheet | Std | Std | Std | ||
| 100mm-thick heat insulating material | Std | Std | Std | ||
| Rooftop structure for trailer house (patented) | Std | Std | Std | ||
| DIMENSIONS | |||||
| Overall width (including eaves) (cm) | 249 | 249 | 249 | ||
| Overall height (from ground) | 375 | 375 | 375 | ||
