Comfort Cabin
This is a studio-type small model which has a bathroom and a kitchen. This model was designed for a long-stay for a small number of persons. It is satisfying Japanese standard of fire prevention, ventilation, air intake, lighting and so on. The body containing heat insulating material for cold districts and double glazing windows provide the comfortable room and energy-saving effect. This is a compact model of 2.4m in width, balancing usability with mobility. Last Updated: July 1, 2017 |

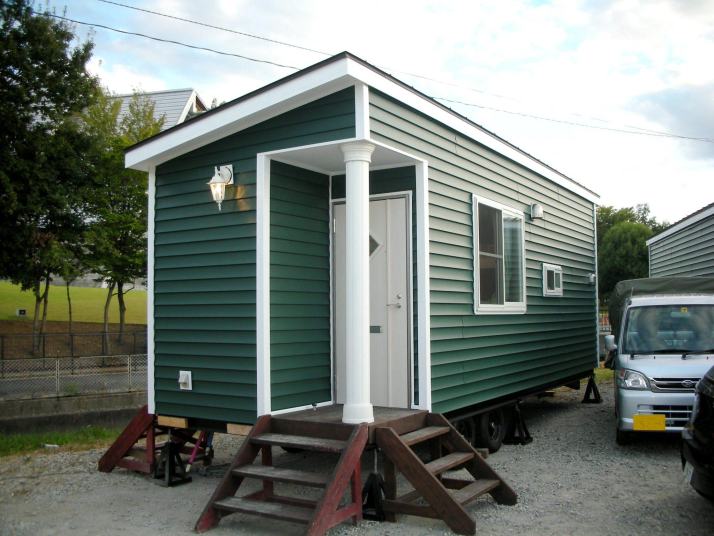

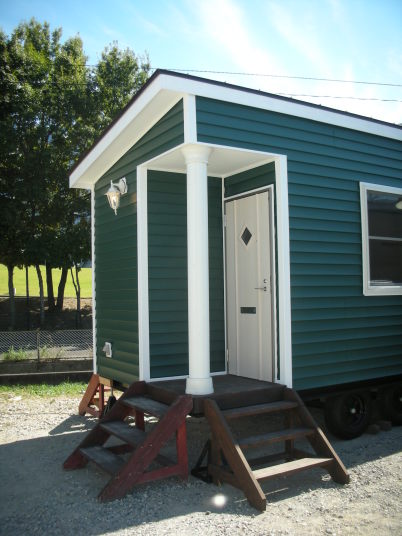

Vinyl siding
|
Wood deck porch
|

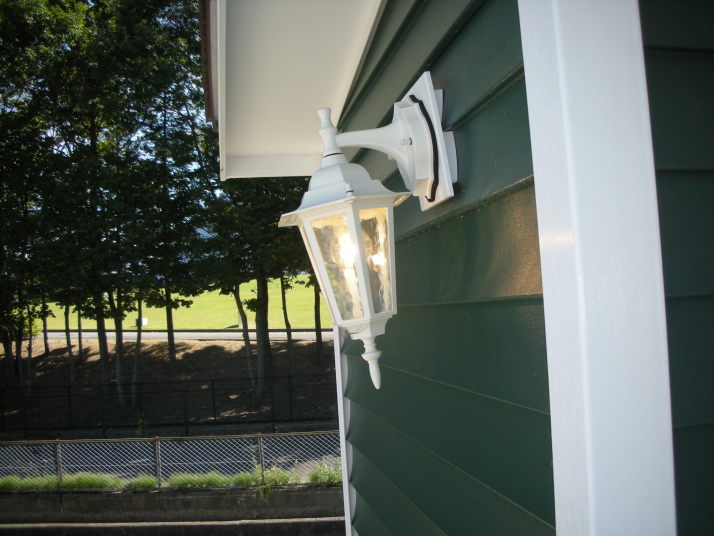

Porch light
|

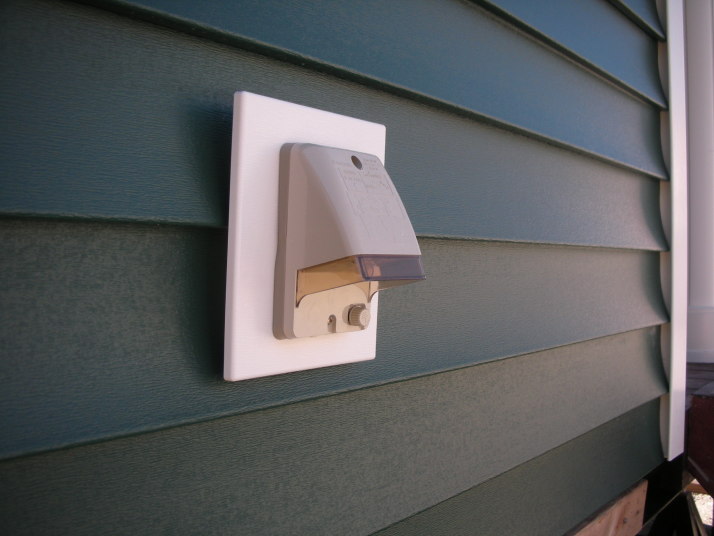

Outdoor waterproofing outlet
|

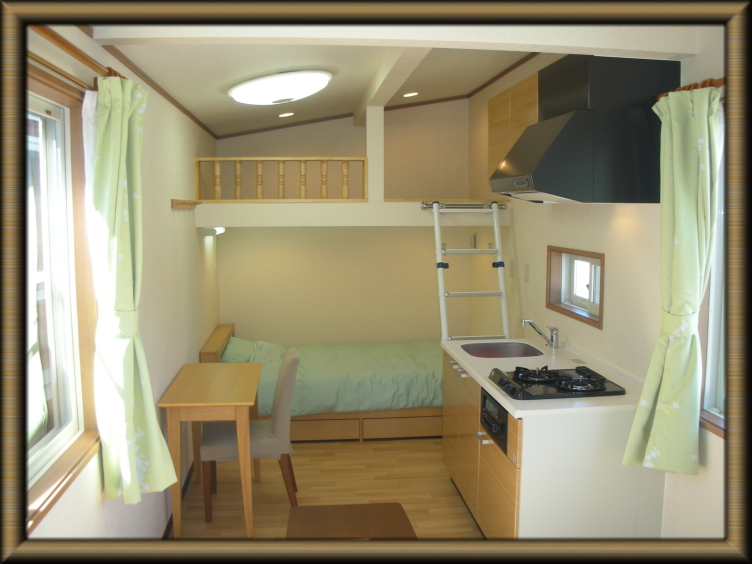

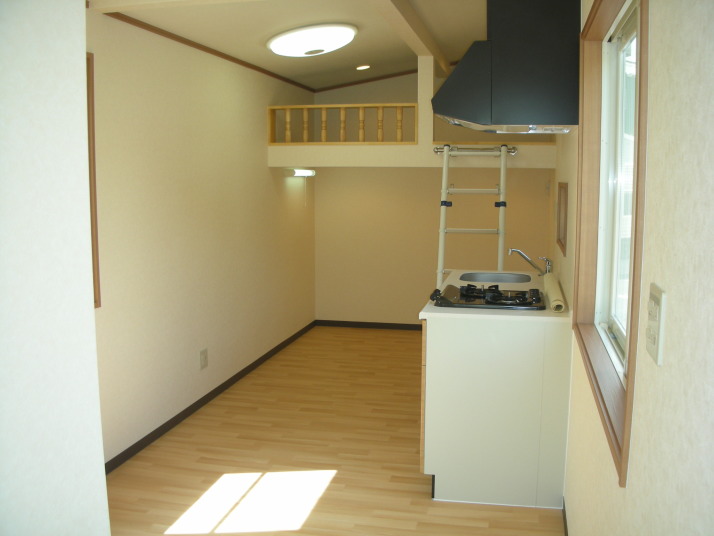

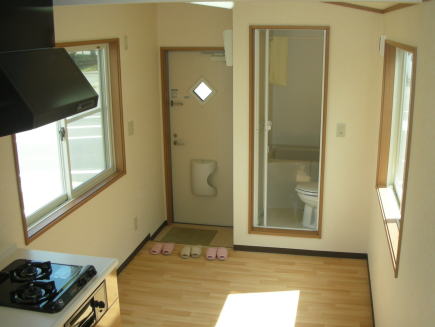

Compact and simple indoor space
|

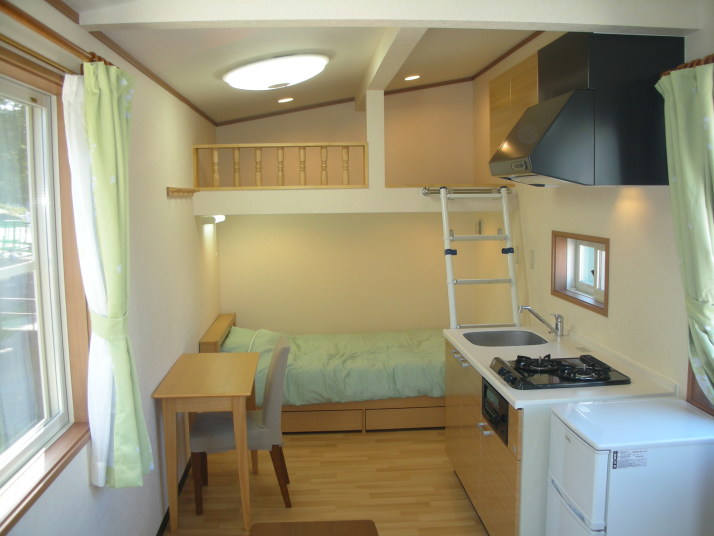

It becomes a comfortable room when furniture is put in. (Furniture set
option)
|

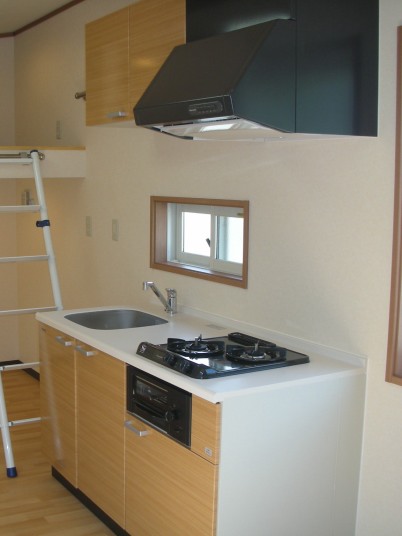

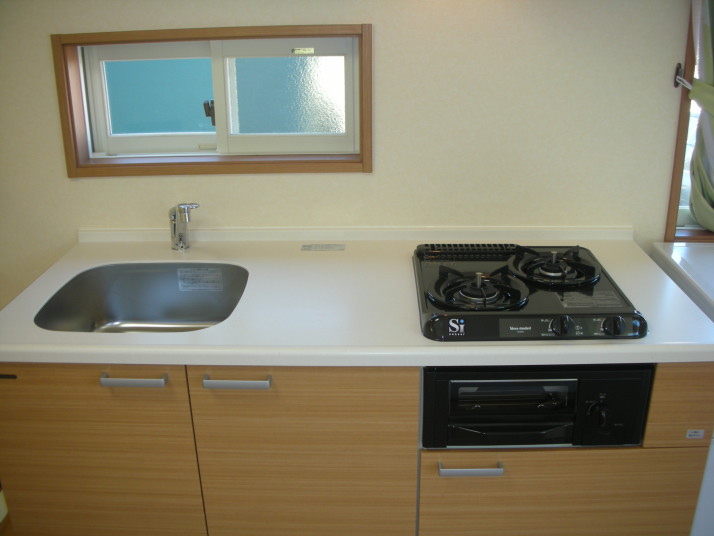

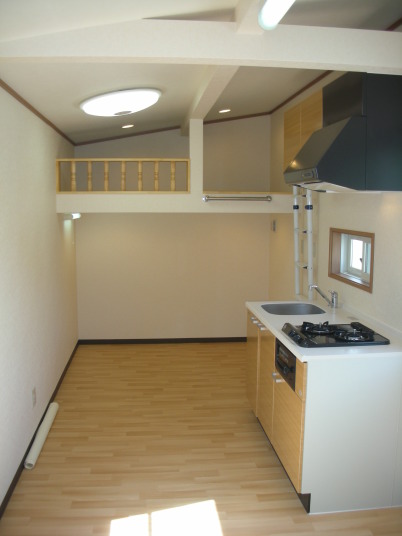

Kitchen with a range hood fan and cabinets
|
2-burner gas cooktop with a fish grill
|

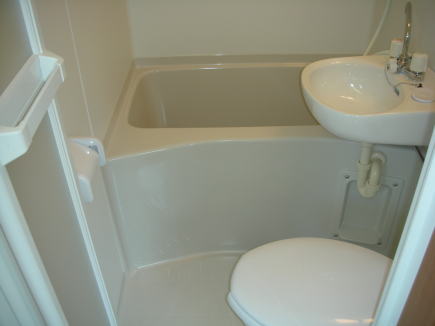

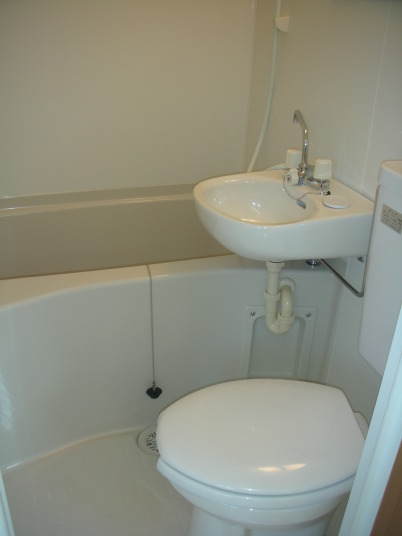

Unit bathroom with a shower, bathtub, toilet and sink
|

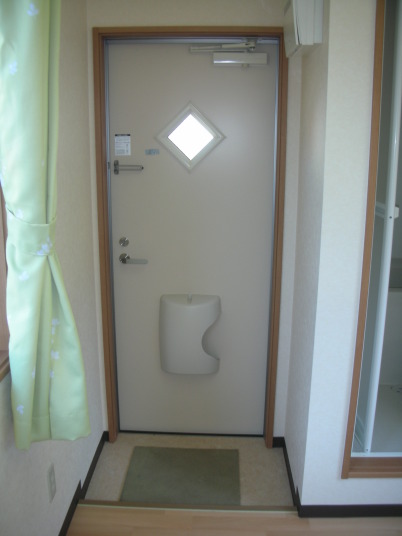

Entrance door with a mail box
|

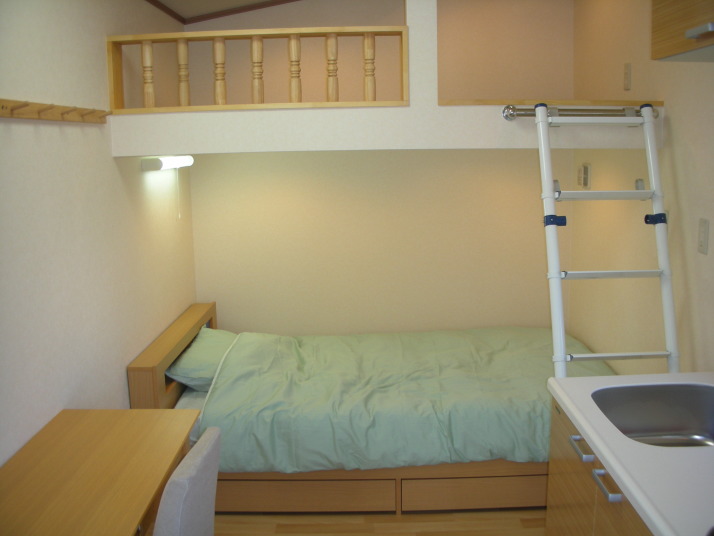

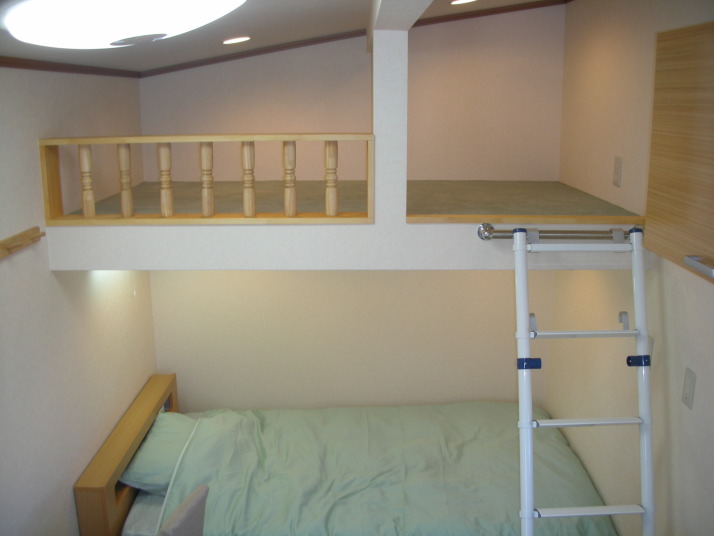

Loft space
|

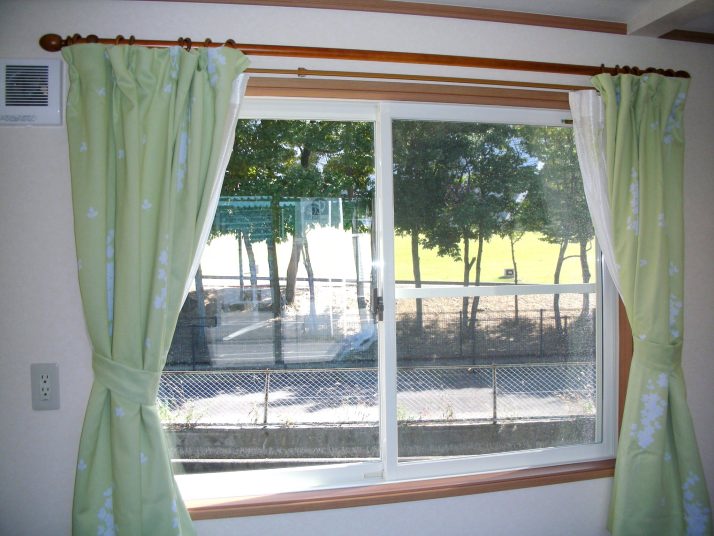

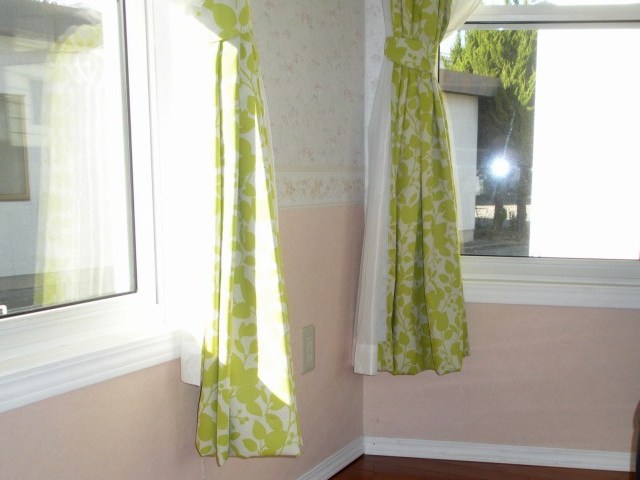

Double-pane windows
|

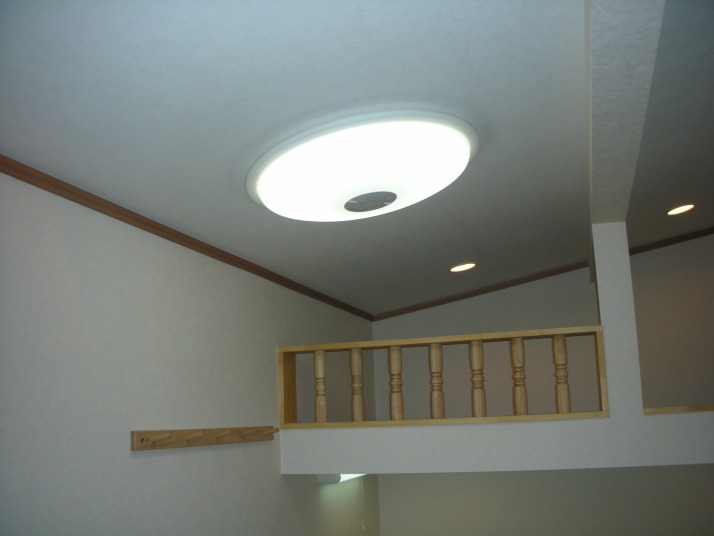

Energy-saving LED ceiling light
|

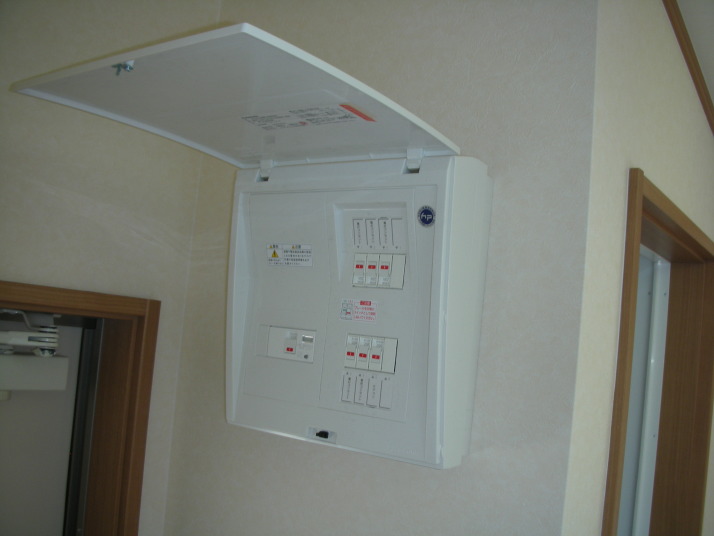

40 amp breaker (made in Japan)
|

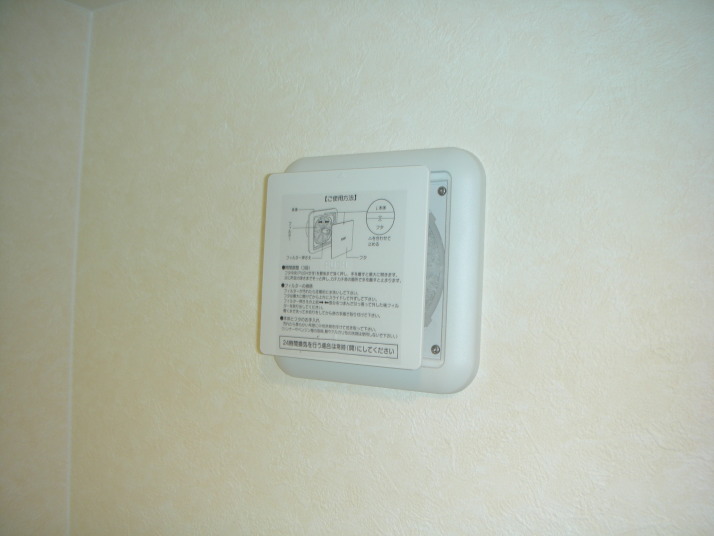

Air inlet
|

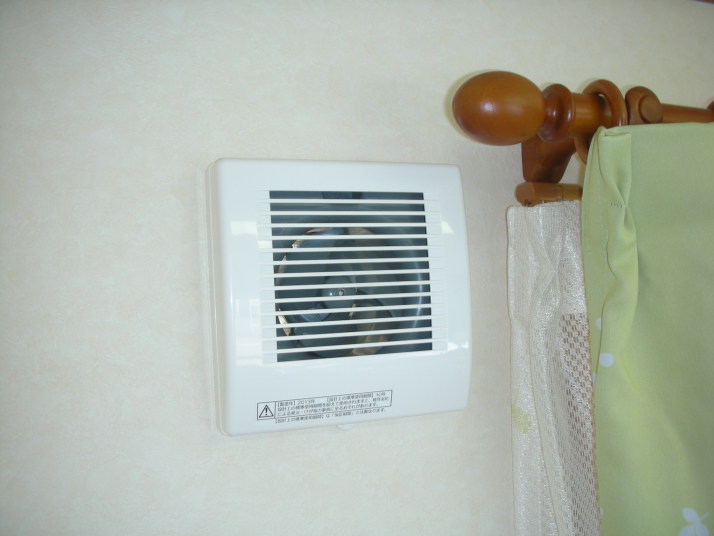

Ventilating fan
|
 |
 |

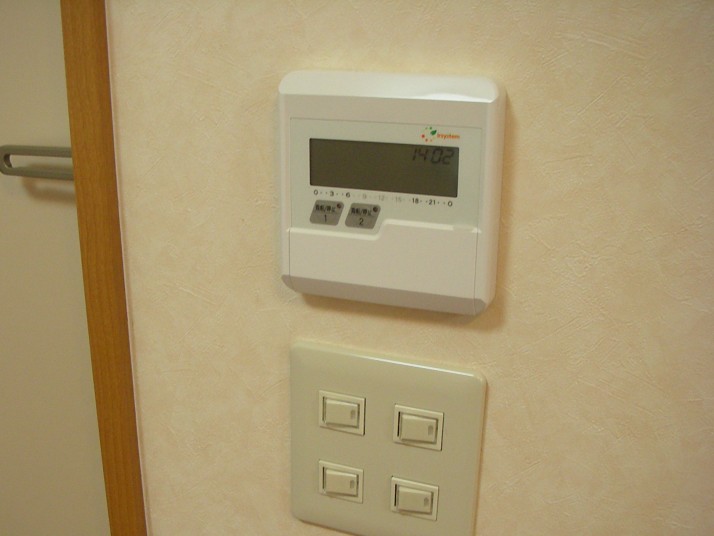

 Floor heating |

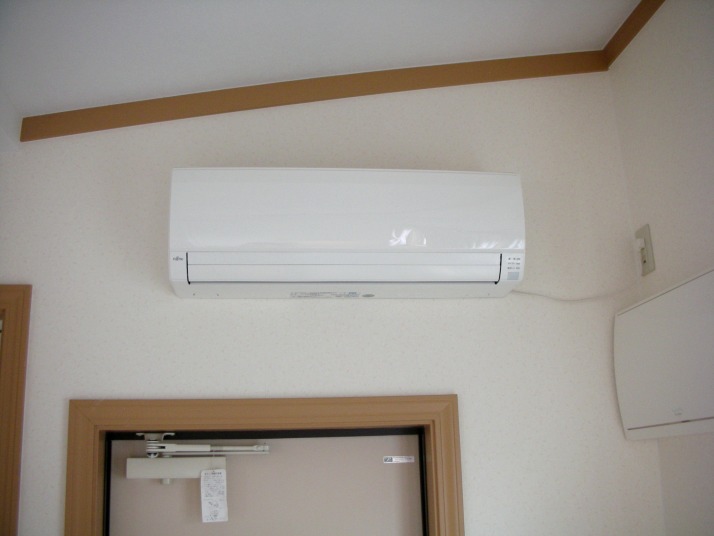

 Air-conditioner |

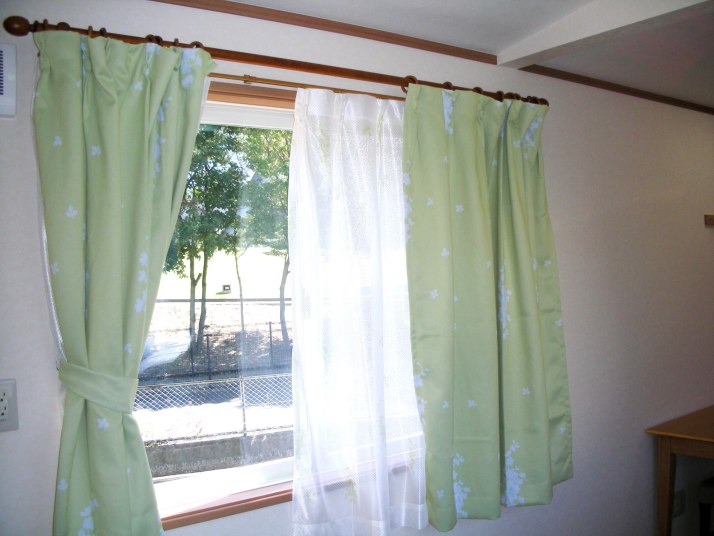

| Furniture set (D): [double curtains (blackout&sheer, wooden rail)/ a single bed/ a coffee table/ a refrigerator (90L)] | |||
|
 |
| Option: Two-tone color +80,000 yen (tax-excluded)
|
| Standard | Option: Two-tone cloth +90,000 yen (tax-excluded) | ||||

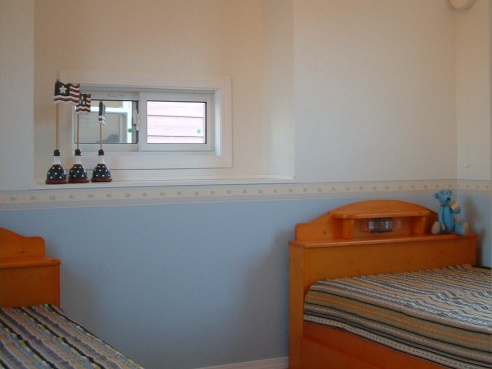

 White cloth |
 Casual Blue |

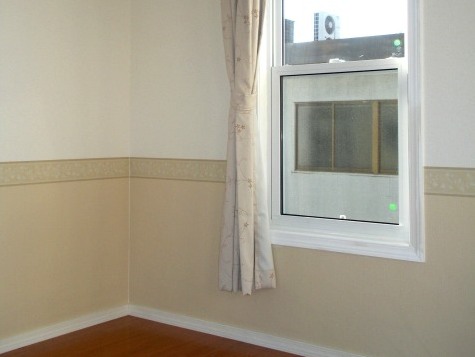

 Classic Beige |
 Noble Green |

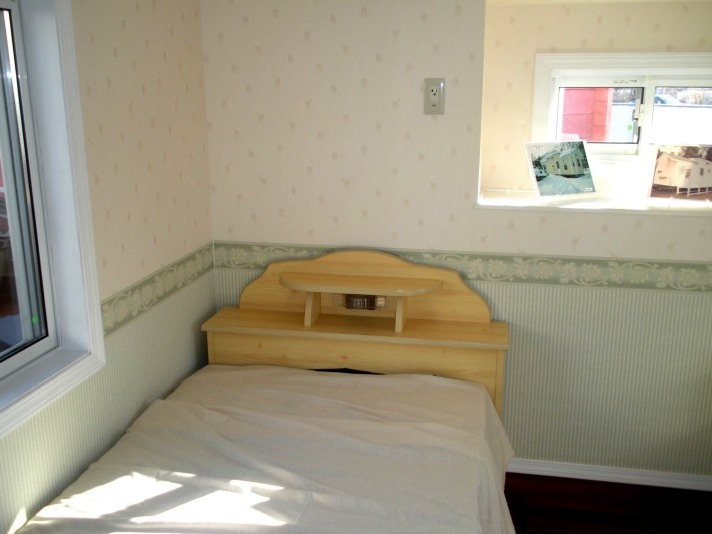

 Elegance Pink |
 Fresh Yellow |
|
Exterior wall
|
Floor: Vinyl flooring (C.F. sheet)
Option: Wooden flooring |
Door
|
Roof
|
Optional exterior wall
(Fiber cement siding) |

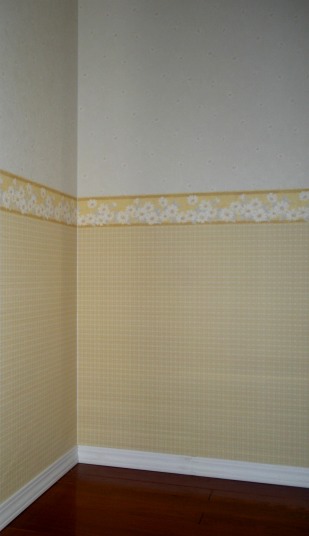

Option interior wall
|

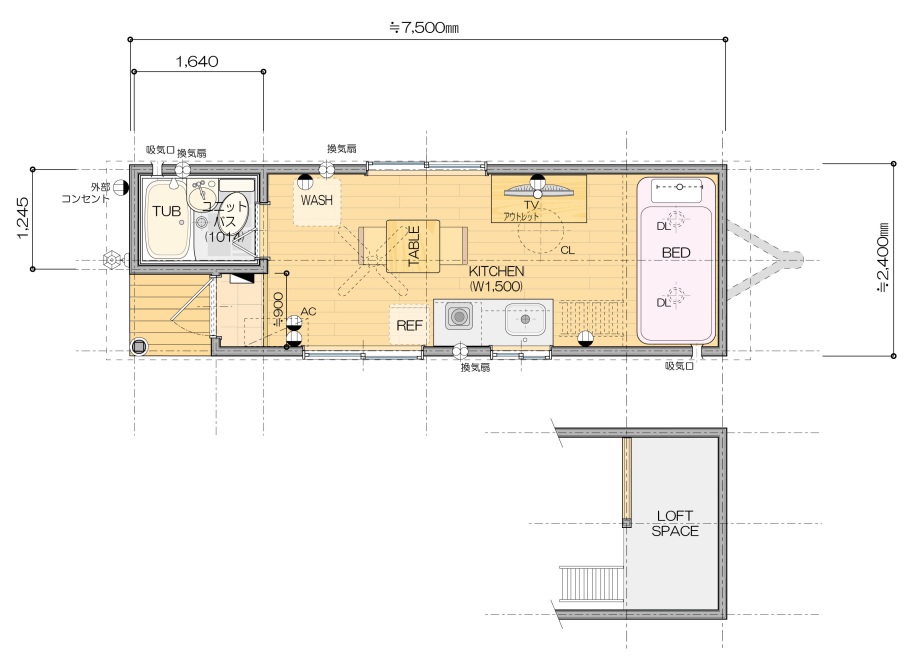

2.4m-wide model. Length is available from 5m to 10m (by one meter).
|
CC824 (length 8 meters)
 |

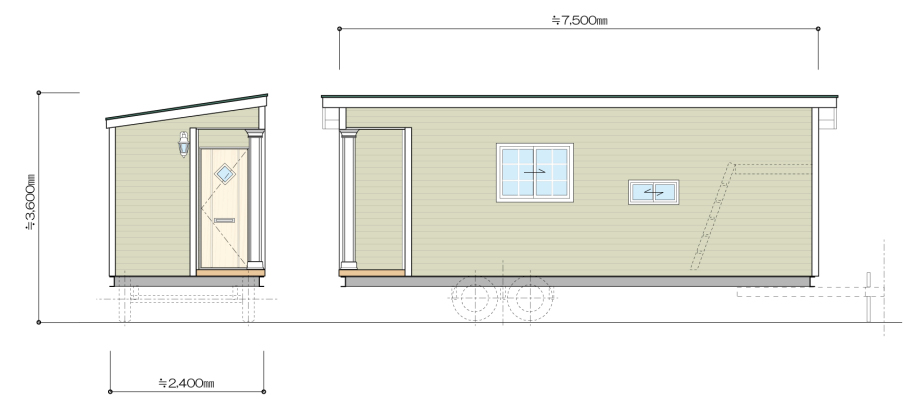

CC824: elevation view
 |
 |
| "Comfort Cabin" Equipment and specifications [House-type, 2.4m-width model] | ||||
|---|---|---|---|---|
| Standard: Std / Option: Opt |
||||
| Model | Comfort Cabin | |||
| Model number | CC624 | CC824 | CC924 | |
| Length | 6m | 8m | 9m | |
| Price (tax-excluded) / Unit: JPY | 7,700,000 | 7,900,000 | 8,000,000 | |
| Price (tax-included) / Unit: JPY | 8,470,000 | 8,690,000 | 8,800,000 | |
| Equipment | with loft | with loft | with loft | |
| EXTERIOR | ||||
| [Roof] Galvalume roof | Std | Std | Std | |
| [Outer Wall] Vinyl siding (standard 9 colors) | Std | Std | Std | |
| Aluminum sash double-pane windows | Std | Std | Std | |
| Wood deck entrance porch with a column | Std | Std | Std | |
| Entrance door with a mail box | Std | Std | Std | |
| Porch lights | Std | Std | Std | |
| Outdoor waterproofing outlet | Std | Std | Std | |
| INTERIOR & EQUIPMENT | ||||
| [Interior Wall] Cloth finish (white) | Std | Std | Std | |
| [Floor] Vinyl flooring (C.F.sheet) (standard 6 colors) | Std | Std | Std | |
| Kitchen (a range hood fan, an overhead cabinet included): 1-basin sink, 2-burner gas cooktop with a fish grill |
Std | Std | Std | |
| Unit bathroom (shower, bathtub, toilet, bathroom sink) | Std | Std | Std | |
| Loft | Std | Std | Std | |
| LED ceiling lights | Std | Std | Std | |
| Wall outlets | Std | Std | Std | |
| Air-conditioner outlet | Std | Std | Std | |
| 40 amp breaker (made in Japan) | Std | Std | Std | |
| Air inlet | Std | Std | Std | |
| Ventilating fan | Std | Std | Std | |
| STRUCTURE | ||||
| Frame of channel steel | Std | Std | Std | |
| Axles with rear brakes | Std | Std | Std | |
| 2x4 structure | Std | Std | Std | |
| Waterproof sheet | Std | Std | Std | |
| Truss roof (resist snow accumulation) | Std | Std | Std | |
| Heat insulating material for cold districts (wall, roof, floor) | Std | Std | Std | |
| DIMENSION | ||||
| Body length (cm) | 600 | 800 | 900 | |
| Body width (cm) | 240 | 240 | 240 | |
| Height (from the ground) (cm) | 375 | 375 | 375 | |
